| Artikelnummer | N089L6-L03 |
| Marke | Innolux |
| Größe | 8.9 |
| Anwendung | NOPC |
| Auflösung | 1024×600 |
| Komposition | LCM |
| Helligkeit | 200 |
| CR | 400:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | CMO |
| Panel-Modell | N089L6-L03 1 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 8.9 inch |
| Auflösung | 1024(RGB)×600 , WSVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 195.072×113.4 mm |
| Umriss | 213.36×129.55×4.9 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 200 cd/m² (Typ.) |
| Kontrastverhältnis | 400:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 3/7 (Typ.)(Tr/Td) |
| Blickwinkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 7S3PWLEDEmbedded (LED Driver) |

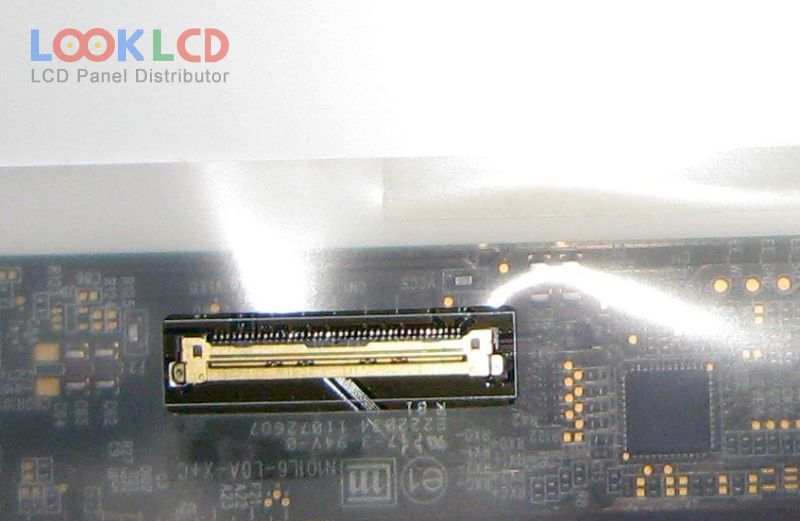

| Signalschnittstelle | LVDS (1 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NOPC |
| A089SW01 V0 | AUO | 8.9 | 1024×600 |
| A089SW01 V1 | AUO | 8.9 | 1024×600 |
| HSD089IFW3-A00 | HannStar | 8.9 | 1024×600 |
| HV089WX1-100 | HYDIS | 8.9 | 1280×768 |
| LJ640U35 | SHARP | 8.9 | 640×400 |
| LSUGC202XA | ALPS | 8.9 | 640×240 |
| LTL089CL02-W02 | Samsung | 8.9 | 1920×1200 |
| N089L6-L02 | Innolux | 8.9 | 1024×600 |
| N089L6-L03 | Innolux | 8.9 | 1024×600 |
| TFTMD089030 | JDI | 8.9 | 2560×1600 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| LP116WH1-TLN1 | LG Display | 11.6 | 1366×768 |
| LP116WH2-TLN1 | LG Display | 11.6 | 1366×768 |
| LS075AT011 | Innolux | 7.5 | 1200×900 |
| LTN101NT06-W03 | Samsung | 10.1 | 1024×600 |
| N089A1-L01 | Innolux | 8.9 | 1280×768 |
| N089L6-L03 | Innolux | 8.9 | 1024×600 |
| N101LGE-L11 | Innolux | 10.1 | 1024×600 |
| N116B6-L07 | Innolux | 11.6 | 1366×768 |
| N116BGE-L41 | Innolux | 11.6 | 1366×768 |
