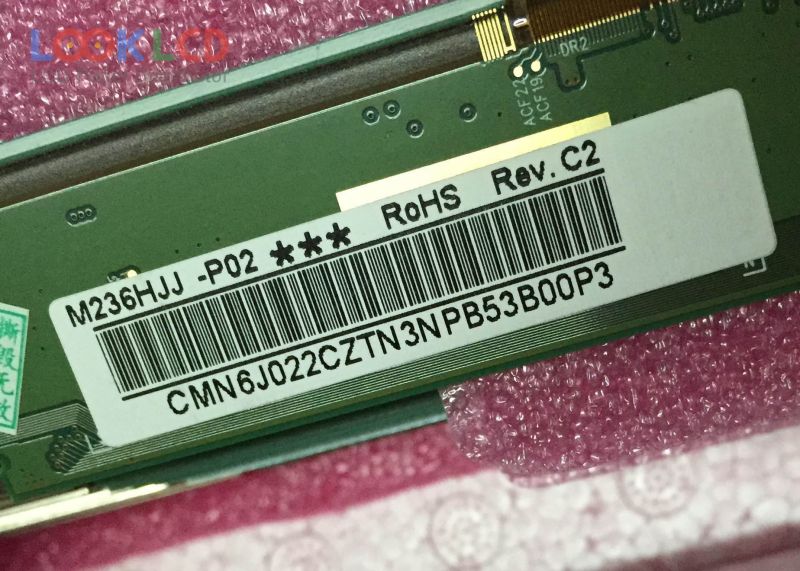

| Artikelnummer | M236HJJ-P02 |
| Marke | Innolux |
| Größe | 23.6 |
| Anwendung | DMPC |
| Auflösung | 1920×1080 |
| Komposition | CELL |
| Helligkeit | 0 |
| CR | 3000:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | No B/L |
| Schnittstelle | LVDS |
| Panel-Marke | CHIMEI INNOLUX |
| Panel-Modell | M236HJJ-P02 |
| Plattentyp | a-Si TFT-LCD , CELL |
| Panelgröße | 23.6 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | Super MVA, Normally Black, Transmissive |
| aktiver Bereich | 521.28×293.22 mm |
| Umriss | 534.28×306.252 mm |
| Oberfläche | Antiglare (Haze 3%), Hard coating (3H) |
| Durchlässigkeit | 4.6% (Typ.)(with Polarizer) |
| Kontrastverhältnis | 3000:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193172% |
| Reaktionszeit | 10 (Typ.)(G to G) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Signalschnittstelle | LVDS (2 ch, 8-bit), 30 pins |
| Eingangsspannung | 5.0V (Typ.) |
| Anwendung | DMPC |
