| Artikelnummer | M236H1-L07 |
| Marke | Innolux |
| Größe | 23.6 |
| Anwendung | DMPC |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 250 |
| CR | 1200:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | CCFL |

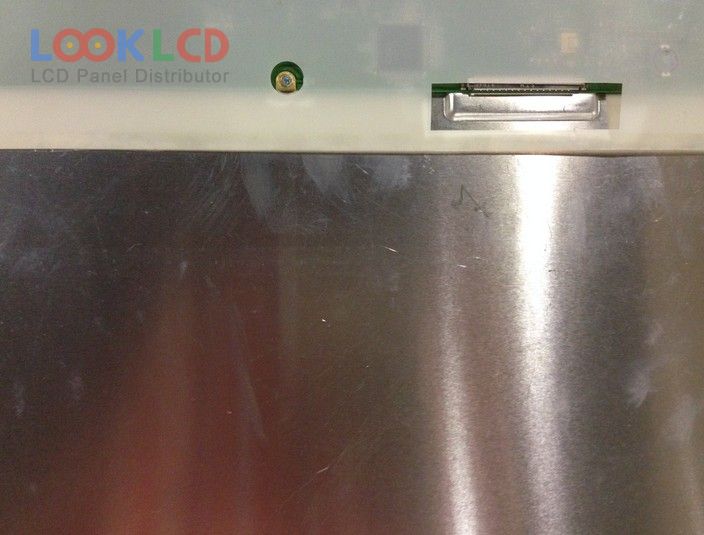

| Schnittstelle | LVDS |
| Panel-Marke | CMO |

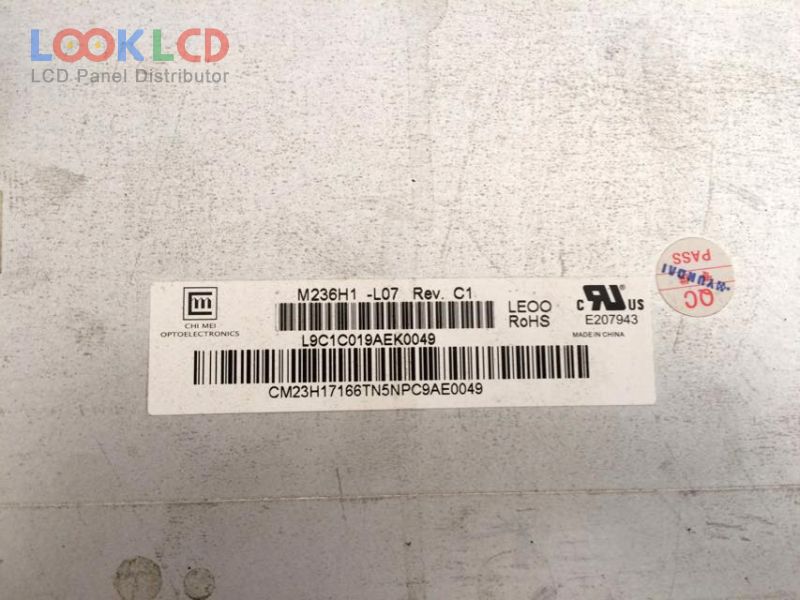

| Panel-Modell | M236H1-L07 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 23.6 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 521.28×293.22 mm |
| Umriss | 544.8×320.5 mm |
| Oberfläche | Antiglare (Haze 25%), Hard coating (3H) |
| Helligkeit | 250 cd/m² (Typ.) |
| Kontrastverhältnis | 1200:1 (Typ.) |
| Farben anzeigen | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Reaktionszeit | 0.7/2.3 (Typ.)(Tr+Td) |
| Blickwinkel | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |

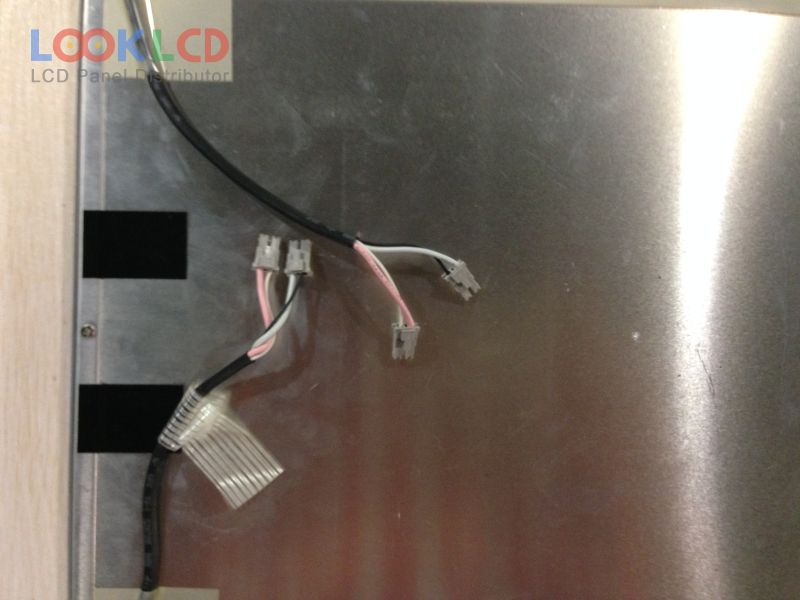

| Lampentyp | 2 pcsCCFLWithout Driver |
| Eingangsspannung | 5.0V (Typ.) |
| Anwendung | DMPC |
