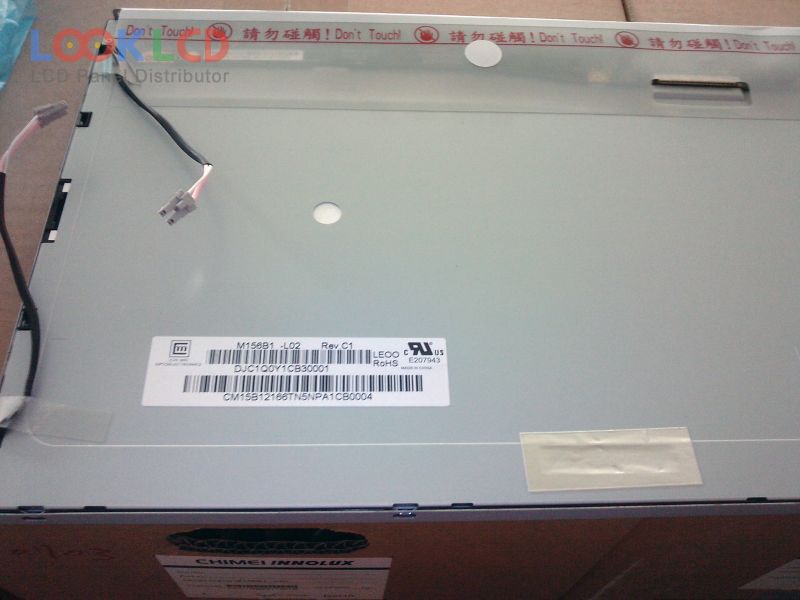

| Artikelnummer | M156B1-L02 |
| Marke | Innolux |
| Größe | 15.6 |
| Anwendung | DMPC |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | 250 |
| CR | 500:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | CMO |
| Panel-Modell | M156B1-L02 4 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.6 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 344.232×193.536 mm |
| Umriss | 363.8×215.9×14.8 mm |
| Oberfläche | Antiglare (Haze 25%), Hard coating (3H) |
| Helligkeit | 250 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193165% |
| Reaktionszeit | 2/6 (Typ.)(Tr/Td) |
| Blickwinkel | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 2 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 30 pins |
| Eingangsspannung | 5.0V (Typ.) |
| Anwendung | DMPC |
