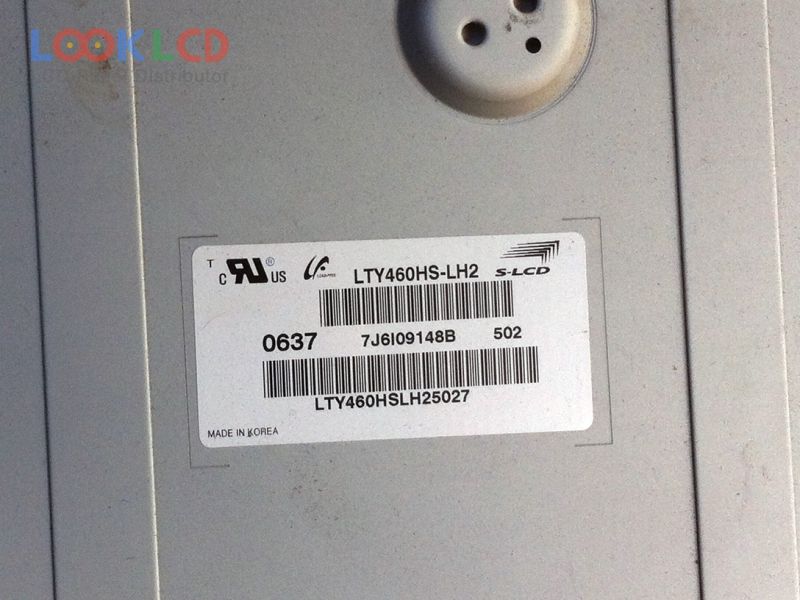

| Artikelnummer | LTY460HS-LH2 |
| Marke | Samsung |
| Größe | 46 |
| Anwendung | LCTV |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 540 |
| CR | 1200:1 |
| Farben | 1.07B |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | S-LCD |
| Panel-Modell | LTY460HS-LH2 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 46 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | SPVA, Normally Black, Transmissive |
| aktiver Bereich | 1018.08×572.67 mm |
| Umriss | 1083×627×55 mm |
| Oberfläche | Antiglare (Haze 44%), Hard coating (3H) |
| Helligkeit | 540 cd/m² (Typ.) |
| Kontrastverhältnis | 1200:1 (Typ.) |
| Farben anzeigen | 1.07B (8-bit + Hi-FRC), CIE193190% |
| Reaktionszeit | 10/6 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 24 pcsCCFLEmbedded (Balance board) |
| Signalschnittstelle | LVDS (2 ch, 10-bit), 51 pins |
| Eingangsspannung | 5.0V (Typ.) |
| Anwendung | LCTV |
