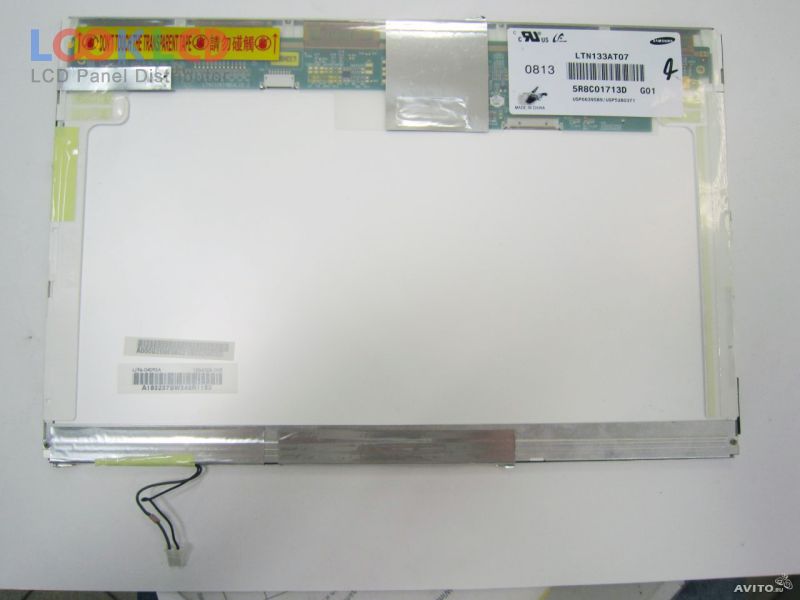

| Artikelnummer | LTN133AT07-G01 |
| Marke | Samsung |
| Größe | 13.3 |
| Anwendung | NBPC |
| Auflösung | 1280×800 |
| Komposition | LCM |
| Helligkeit | 250 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | SAMSUNG |

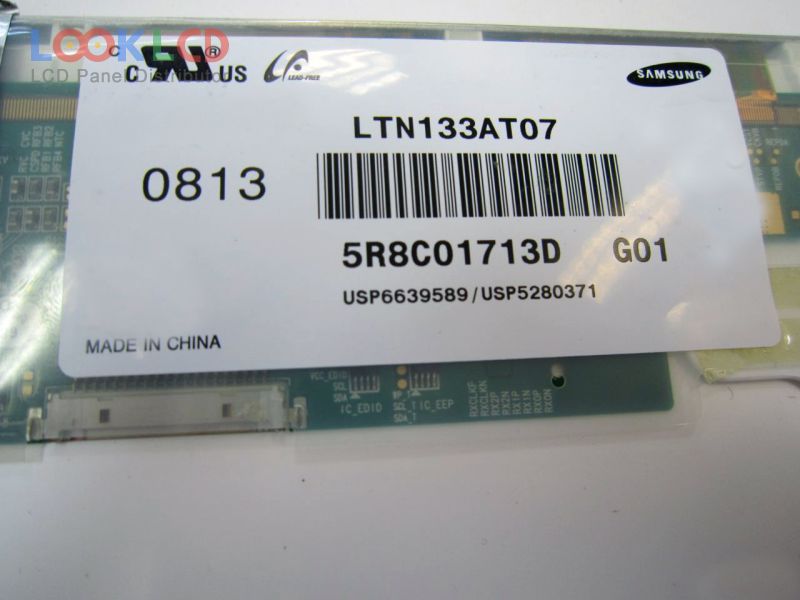

| Panel-Modell | LTN133AT07-G01 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 13.3 inch |
| Auflösung | 1280(RGB)×800 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 286.08×178.8 mm |
| Umriss | 299×195×5.5 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Glare (Haze 0%), Hard coating (3H) |
| Helligkeit | 250 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 25 (Typ.)(Tr+Td) |
| Blickwinkel | 40/40/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
