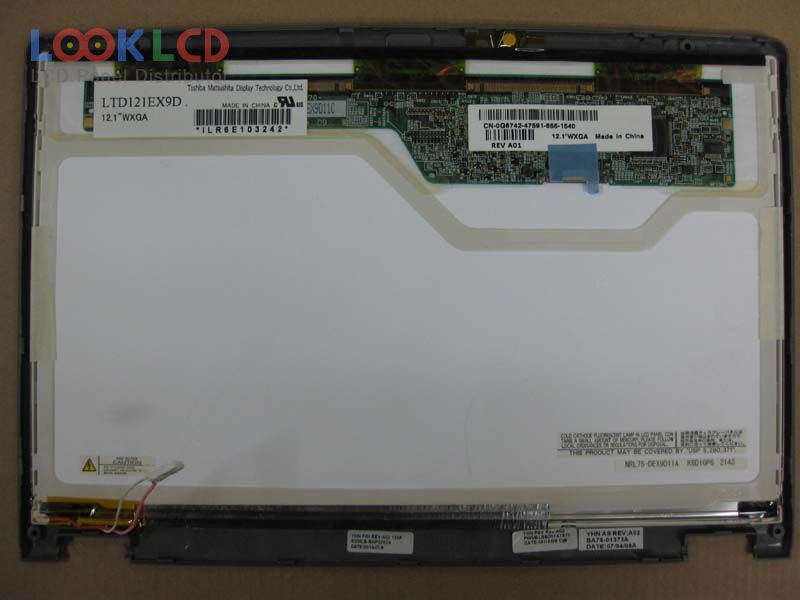

| Artikelnummer | LTD121EX9D |
| Marke | TOSHIBA |
| Größe | 12.1 |
| Anwendung | NBPC |
| Auflösung | 1280×768 |
| Komposition | LCM |
| Helligkeit | 220 |
| CR | 300:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | Toshiba Matsushita |
| Panel-Modell | LTD121EX9D |
| Plattentyp | LTPS TFT-LCD , LCM |
| Panelgröße | 12.1 inch |
| Auflösung | 1280(RGB)×768 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 263.04×157.824 mm |
| Umriss | 275×173.5×5.2 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 220 cd/m² (Typ.) |
| Kontrastverhältnis | 300:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 50/50 (Max.)(Tr/Td) |
| Blickwinkel | 30/30/10/20 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
