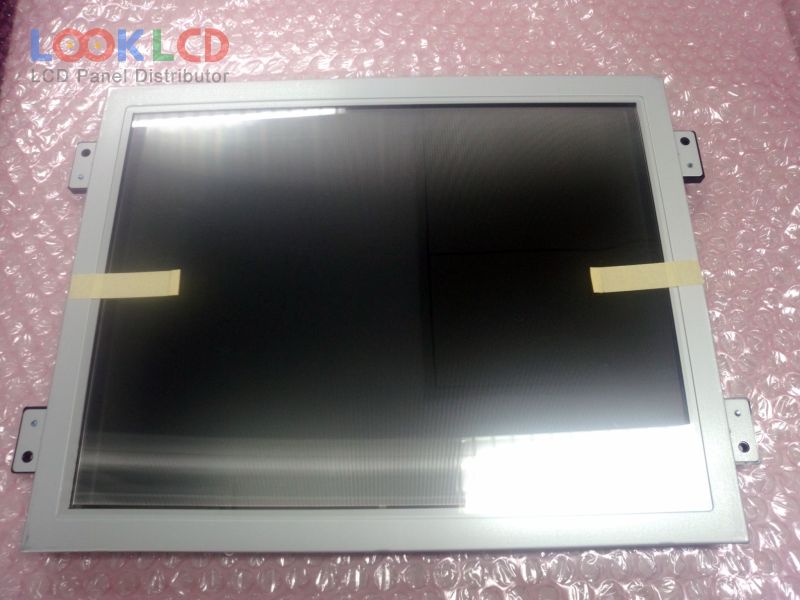

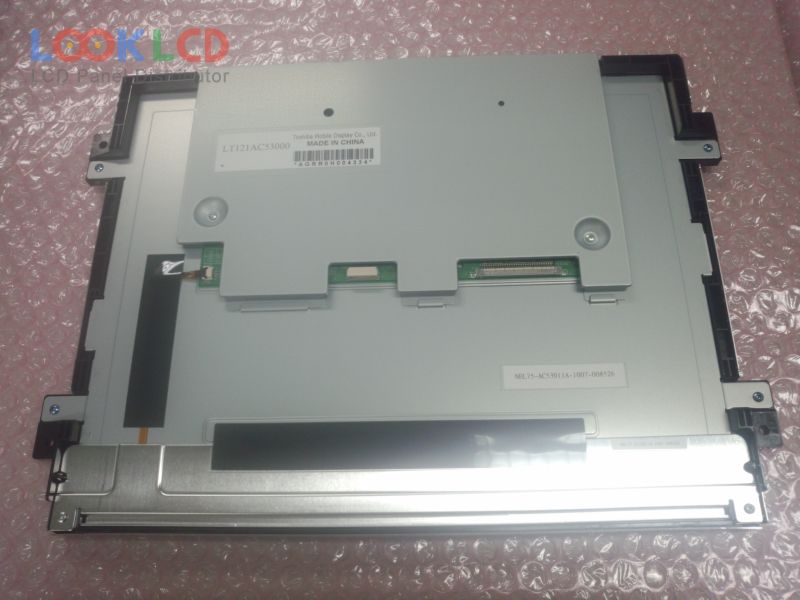

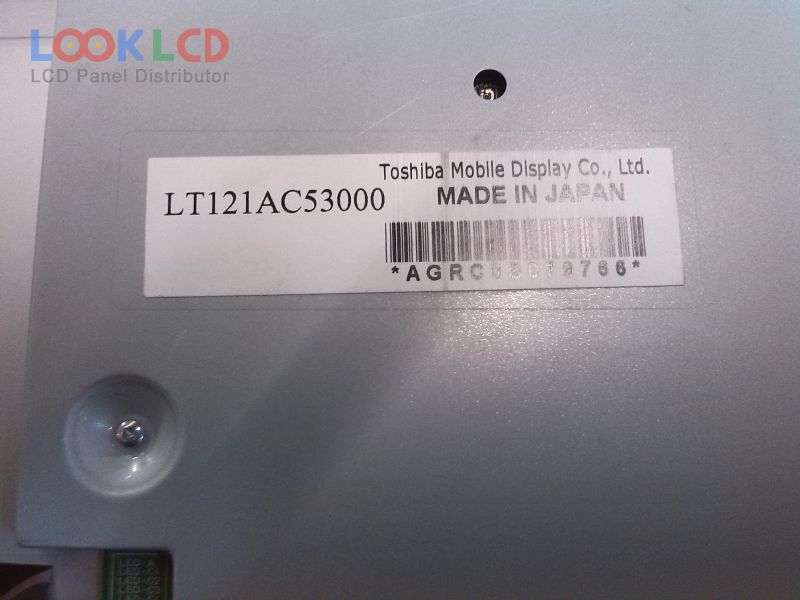

| Artikelnummer | LT121AC53000 |
| Marke | TOSHIBA |
| Größe | 12.1 |
| Anwendung | GM |
| Auflösung | 466×350 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 500:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | Toshiba Mobile Display |
| Panel-Modell | LT121AC53000 |
| Plattentyp | LTPS TFT-LCD , LCM |
| Panelgröße | 12.1 inch |
| Auflösung | 466×350(RGB) |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 245.7×184.275 mm |
| Umriss | 310×225 mm |
| Oberfläche | Hard coating |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit) |
| Reaktionszeit | 8/17 (Typ.)(Tr/Td) |
| Blickwinkel | 60/60/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (2 ch, 8-bit), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | GM |
| AA121TH11-DE1 | Mitsubishi | 12.1 | 1280×800 |
| LT121AC53000 | TOSHIBA | 12.1 | 466×350 |
| LT121AC62000 | TOSHIBA | 12.1 | 1024×768 |
| LTD121EC5S | TOSHIBA | 12.1 | 1024×768 |
| LTD121EWUD | TOSHIBA | 12.1 | 1280×800 |
| LTD121KX5V | TOSHIBA | 12.1 | 1280×800 |
| LTM12C285 | TOSHIBA | 12.1 | 800×600 |
| LTN121W3-L01 | Samsung | 12.1 | 1280×800 |
| TCG121XGLPAPNN-AN20 | Kyocera | 12.1 | 1024×768 |
| TM121SDS01 | Tianma | 12.1 | 800×600 |
| G104X1-L02 | Innolux | 10.4 | 1024×768 |
| L5S30341P00 | SANYO | 12.1 | 800×600 |
| LQ121S1LG51 | SHARP | 12.1 | 800×600 |
| LQ123K1LG03 | SHARP | 12.3 | 1280×480 |
| LQ170E1LG21 | SHARP | 17.0 | 1280×1024 |
| LQ170K1LW02 | SHARP | 17.0 | 1280×768 |
| LQ190E1LC06 | SHARP | 19.0 | 1280×1024 |
| LQ190E1LW61 | SHARP | 19.0 | 1280×1024 |
| LQ196A1LZ03 | SHARP | 19.6 | 1600×1200 |
| TX39D01VM1BAA | KOE | 15.4 | 1280×768 |
