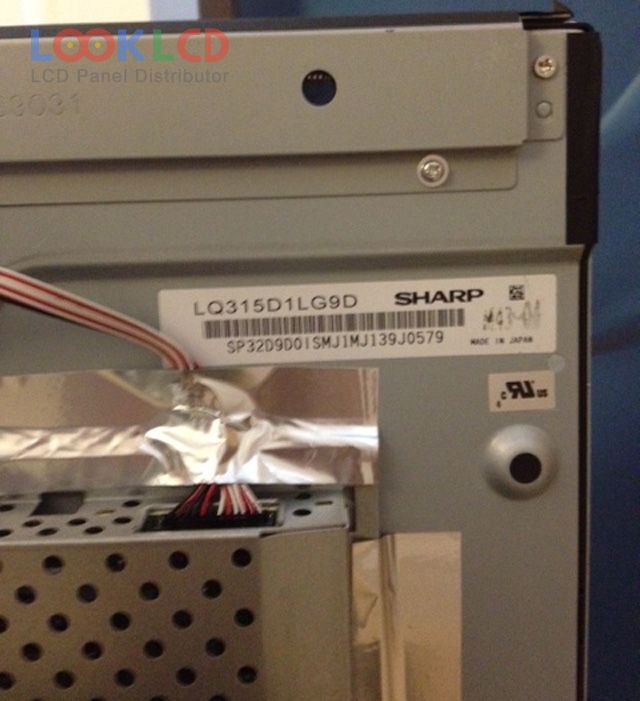

| Artikelnummer | LQ315D1LG9D |
| Marke | SHARP |
| Größe | 31.5 |
| Anwendung | DMPC |
| Auflösung | 3840×2160 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 1000:1 |
| Farben | 1.07B |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | SHARP |
| Panel-Modell | LQ315D1LG9D |
| Plattentyp | IGZO TFT-LCD , LCM |
| Panelgröße | 31.5 inch |
| Auflösung | 3840(RGB)×2160 , UHD |
| Anzeigemodus | New Mode2, Normally Black, Transmissive |
| aktiver Bereich | 697.92×392.58 mm |
| Oberfläche | Antiglare, Hard coating (3H), Antireflection |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 1000:1 (Typ.) |
| Farben anzeigen | 1.07B (10-bit), Adobe |
| Reaktionszeit | 8 (Typ.)(G to G) |
| Blickwinkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (8 ch, 10-bit) |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | DMPC |
