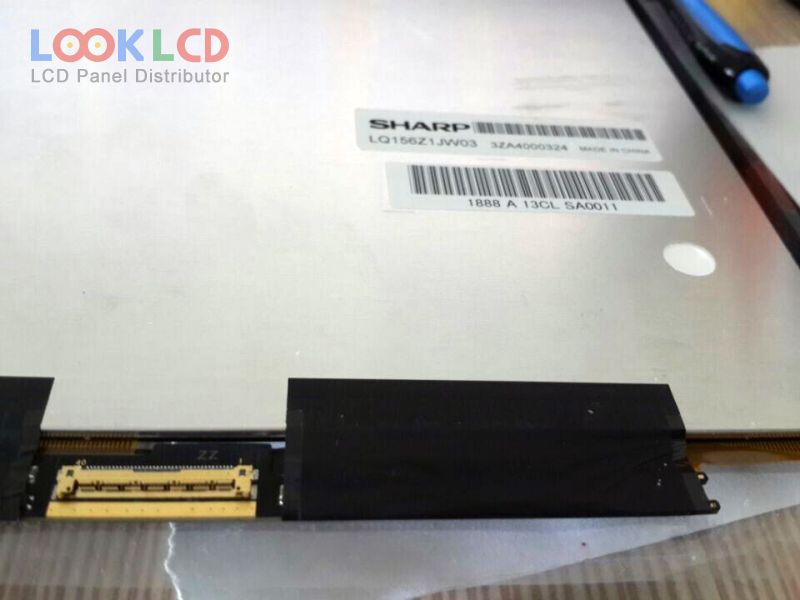

| Artikelnummer | LQ156Z1JW03 |
| Marke | SHARP |
| Größe | 15.6 |
| Anwendung | NBPC |
| Auflösung | 3200×1800 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 1000:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | eDP |
| Panel-Marke | SHARP |
| Panel-Modell | LQ156Z1JW03 |
| Plattentyp | IGZO TFT-LCD , LCM |
| Panelgröße | 15.6 inch |
| Auflösung | 3200(RGB)×1800 , Quad-HD+ |
| Anzeigemodus | New Mode2, Normally Black, Transmissive |
| aktiver Bereich | 345.6×194.4 mm |
| Umriss | 358.12×207.56×2.9 mm |
| Formstil | Slim (PCBA Flat, Depth ≤3.2mm) |
| Oberfläche | Antiglare (Haze 42%) |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 1000:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193172% |
| Reaktionszeit | 25 (Typ.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | eDP (4 Lanes), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
