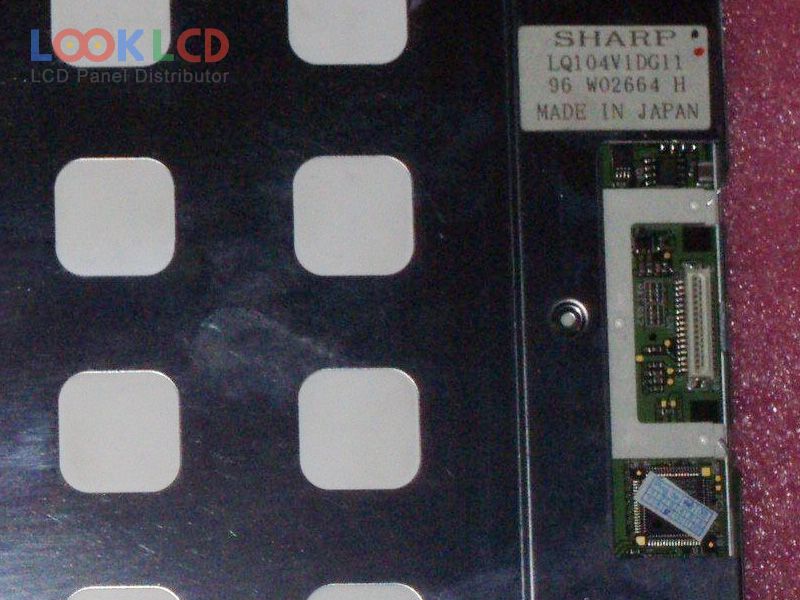

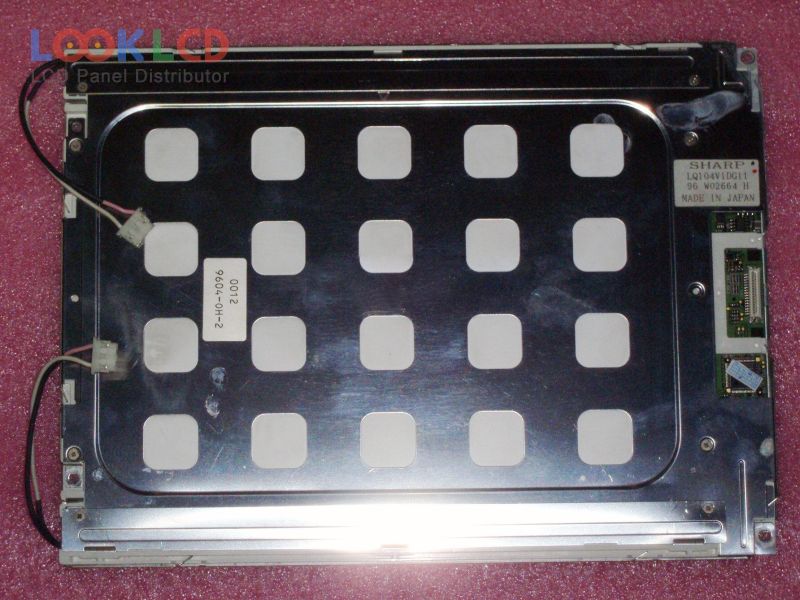

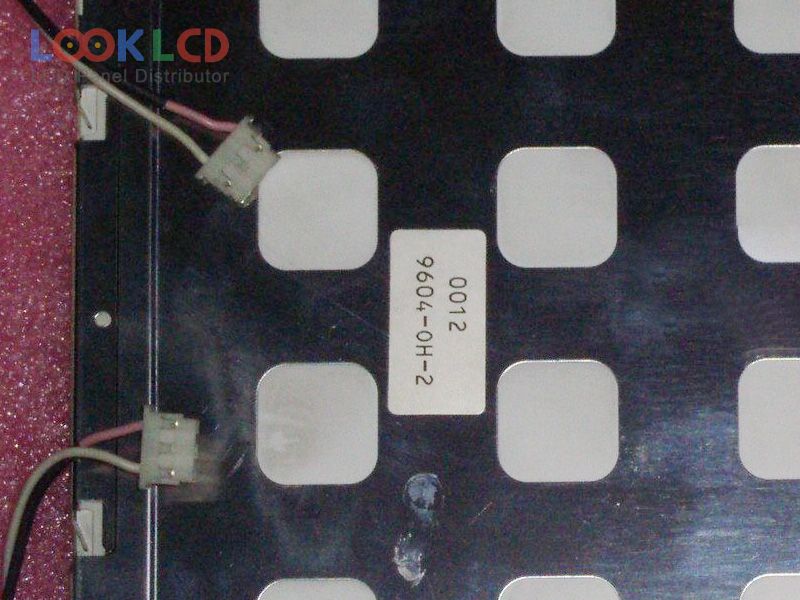

| Artikelnummer | LQ104V1DG11 |
| Marke | SHARP |
| Größe | 10.4 |
| Anwendung | IA |
| Auflösung | 640×480 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 300:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | TTL |
| Panel-Marke | SHARP |
| Panel-Modell | LQ104V1DG11 3 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.4 inch |
| Auflösung | 640(RGB)×480 , VGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 211.2×158.4 mm |
| Umriss | 265×195×11.5 mm |
| Oberfläche | Antiglare (Haze 28%), Hard coating (3H), Antireflection |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 300:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 20/40 (Typ.)(Tr/Td) |
| Blickwinkel | 70/70/40/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 2 pcsCCFLWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 6-bit), 31 pins |
| Eingangsspannung | 5.0V (Typ.)(VCC) |
| Anwendung | IA |
| LQ104S1DG34 | SHARP | 10.4 | 800×600 |
| LQ104S1LG32 | SHARP | 10.4 | 800×600 |
| LQ104S1LG61 | SHARP | 10.4 | 800×600 |
| LQ104V1DC41 | SHARP | 10.4 | 640×480 |
| LQ104V1DG51 | SHARP | 10.4 | 640×480 |
| LQ104V1DG5B | SHARP | 10.4 | 640×480 |
| LQ104V1DG71 | SHARP | 10.4 | 640×480 |
| LQ104V1LG61 | SHARP | 10.4 | 640×480 |
| LQ104V1LG92 | SHARP | 10.4 | 640×480 |
| LQ104X2LX05B | SHARP | 10.4 | 1024×768 |
| AA078AA01 | Mitsubishi | 7.8 | 800×300 |
| AA104XG12 | Mitsubishi | 10.4 | 1024×768 |
| AA106TA01 | Mitsubishi | 10.6 | 1280×768 |
| AA170EC01 | Mitsubishi | 17.0 | 1280×1024 |
| LB064V02-TD01 | LG Display | 6.4 | 640×480 |
| LQ104V1DG71 | SHARP | 10.4 | 640×480 |
| NL8060BC21-11C | NLT | 8.4 | 800×600 |
| SX19V007-Z2A | KOE | 7.5 | 640×480 |
| TM240128ABCWVBYD | Tianma | 4.8 | 240×128 |
| TM24064BBCWVBYD | Tianma | 5.2 | 240×64 |
