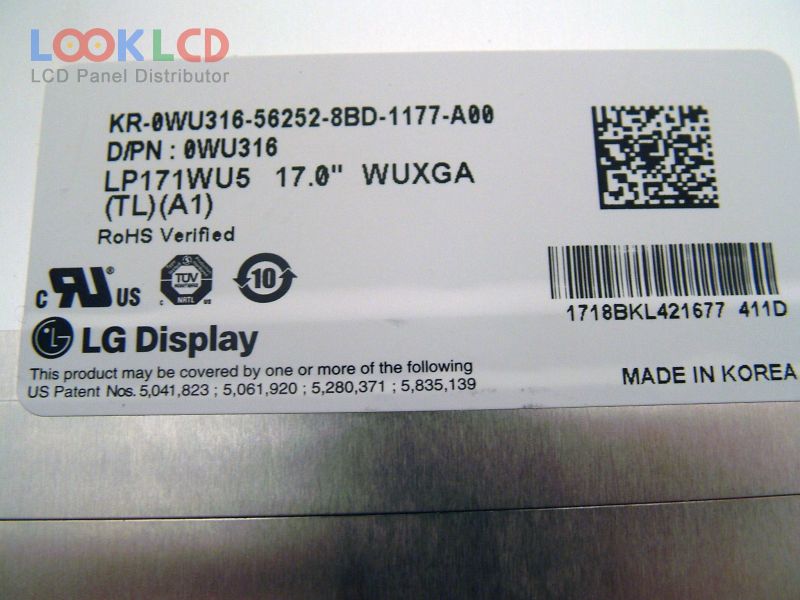

| Artikelnummer | LP171WU5-TLA1 |
| Marke | LG Display |
| Größe | 17.1 |
| Anwendung | NBPC |
| Auflösung | 1920×1200 |
| Komposition | LCM |
| Helligkeit | |
| CR | |
| Farben | 16.7M |
| Hintergrundbeleuchtung | RGB LED |
| Schnittstelle | LVDS |
| Panel-Marke | LG Display |
| Panel-Modell | LP171WU5-TLA1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 17.1 inch |
| Auflösung | 1920(RGB)×1200 , WUXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 367.2×229.5 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | |
| Helligkeit | |
| Kontrastverhältnis | |
| Farben anzeigen | 16.7M (8-bit), CIE1931109% |
| Reaktionszeit | |
| Blickwinkel | |
| Frequenz | 60Hz |
| Lampentyp | RGB LED |
| Signalschnittstelle | LVDS (2 ch, 6-bit) |
| rohs: | |
| Anwendung | NBPC |
