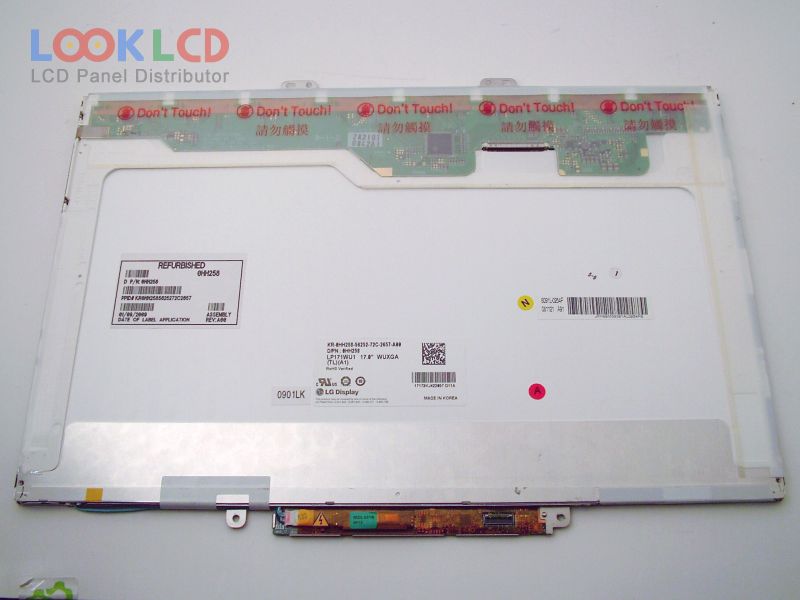

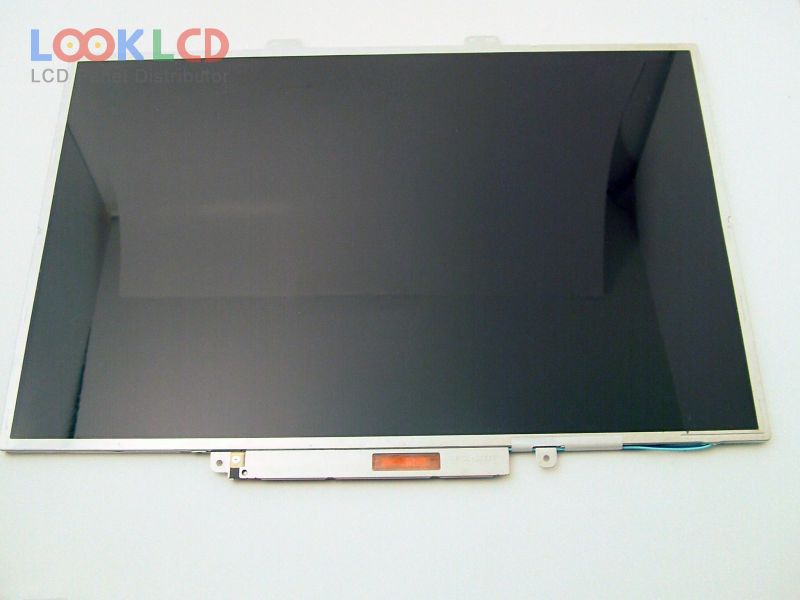

| Artikelnummer | LP171WU1-TLA1 |
| Marke | LG Display |
| Größe | 17.1 |
| Anwendung | NBPC |
| Auflösung | 1920×1200 |
| Komposition | LCM |
| Helligkeit | 260 |
| CR | 700:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | LG.Philips LCD |

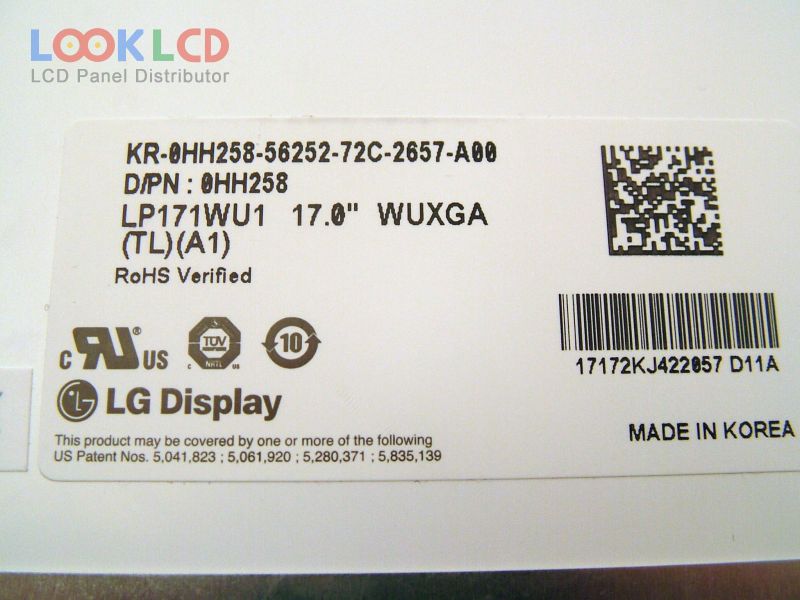

| Panel-Modell | LP171WU1-TLA1 1 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 17.1 inch |
| Auflösung | 1920(RGB)×1200 , WUXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 367.2×229.5 mm |
| Umriss | 382.2×267.2×6.6 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Glare (Haze 0%), Hard coating (2H) |
| Helligkeit | 260 cd/m² (Typ.) |
| Kontrastverhältnis | 700:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193150% |
| Reaktionszeit | 16 (Typ.)(Tr+Td) |
| Blickwinkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (2 ch, 6-bit), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
