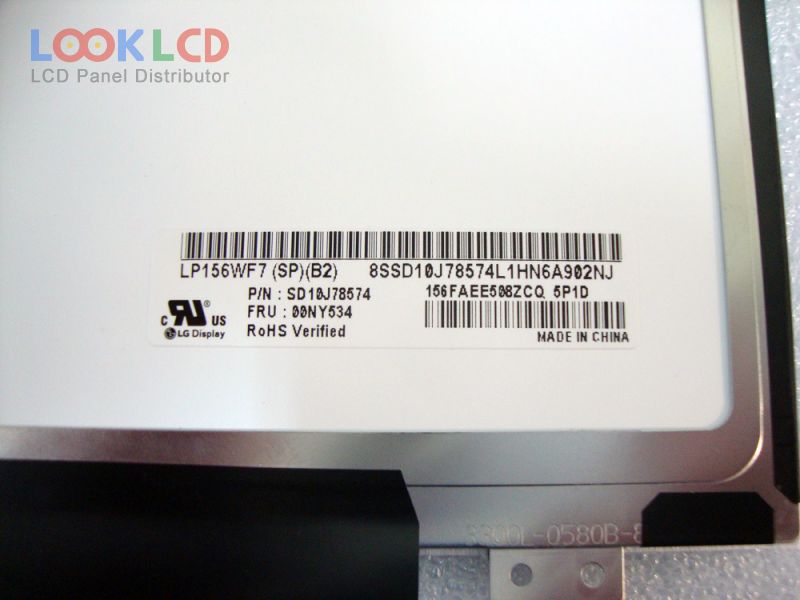

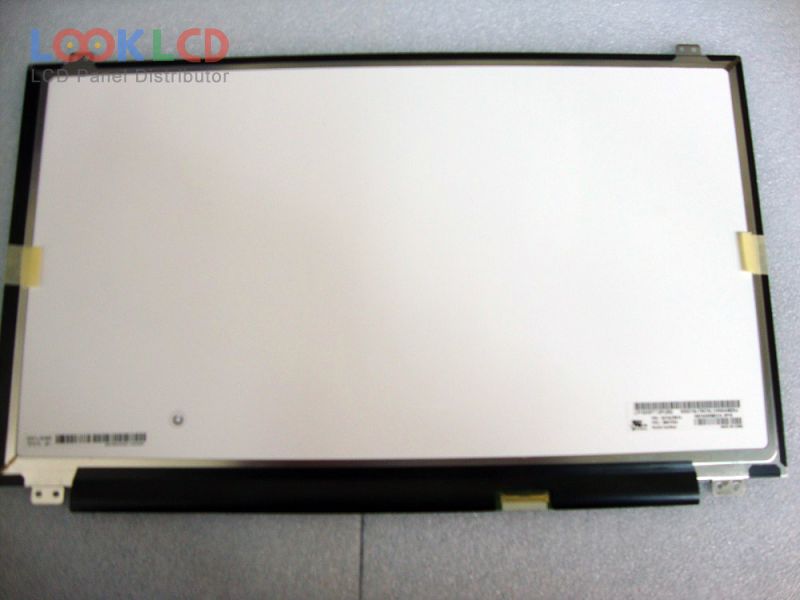

| Artikelnummer | LP156WF7-SPB2 |
| Marke | LG Display |
| Größe | 15.6 |
| Anwendung | NBPC |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | |
| CR | 800:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | eDP |
| Panel-Marke | LG Display |
| Panel-Modell | LP156WF7-SPB2 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.6 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | IPS, Normally Black, Transmissive |
| aktiver Bereich | 344.16×193.59 mm |
| Umriss | 359.5×223.8×3.3 mm |
| Oberfläche | |
| Helligkeit | |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193148% |
| Reaktionszeit | 25 (Typ.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLED |
| Signalschnittstelle | eDP (2 Lanes) |
| Anwendung | NBPC |
