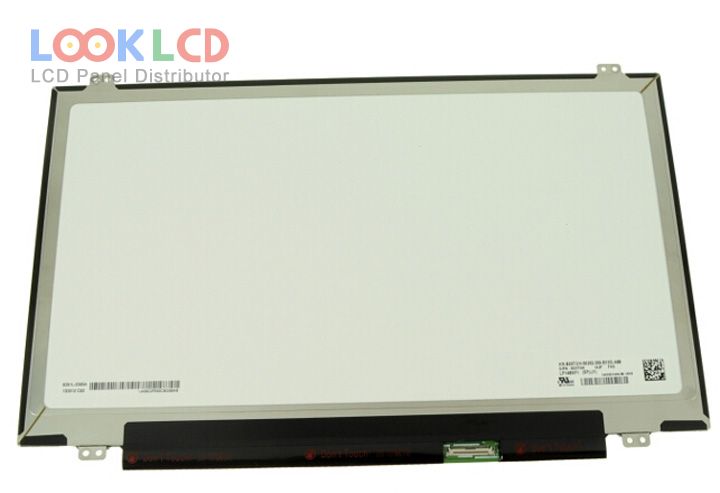

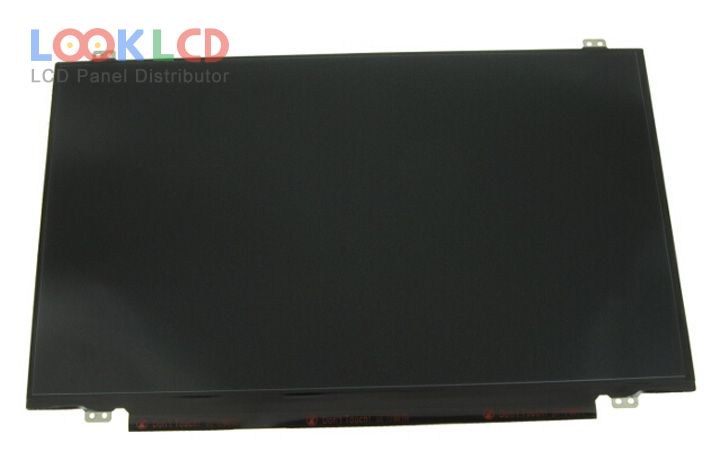

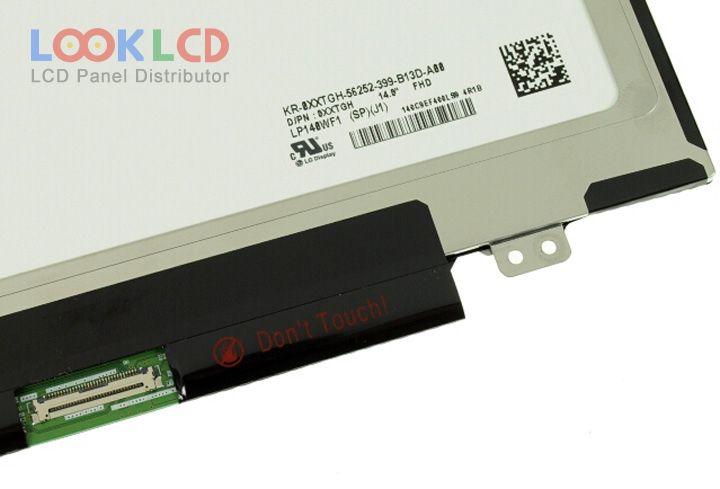

| Artikelnummer | LP140WF1-SPJ1 |
| Marke | LG Display |
| Größe | 14.0 |
| Anwendung | NBPC |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 700:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | eDP |
| Panel-Marke | LG Display |
| Panel-Modell | LP140WF1-SPJ1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 14.0 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | AH-IPS, Normally Black, Transmissive |
| aktiver Bereich | 309.31×173.99 mm |
| Umriss | 320.4×205.1×3 mm |
| Formstil | Slim (PCBA Flat, Depth ≤3.2mm) |
| Oberfläche | Glare (Haze 0%) |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 700:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193160% |
| Reaktionszeit | 35 (Typ.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | eDP (2 Lanes), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
