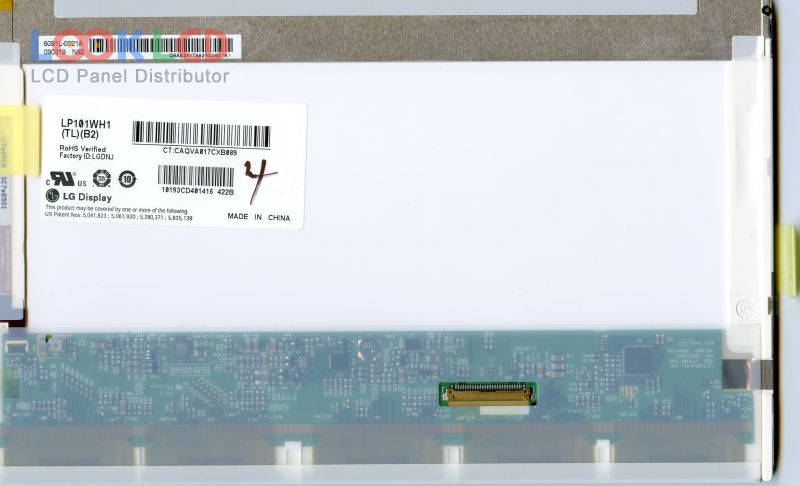

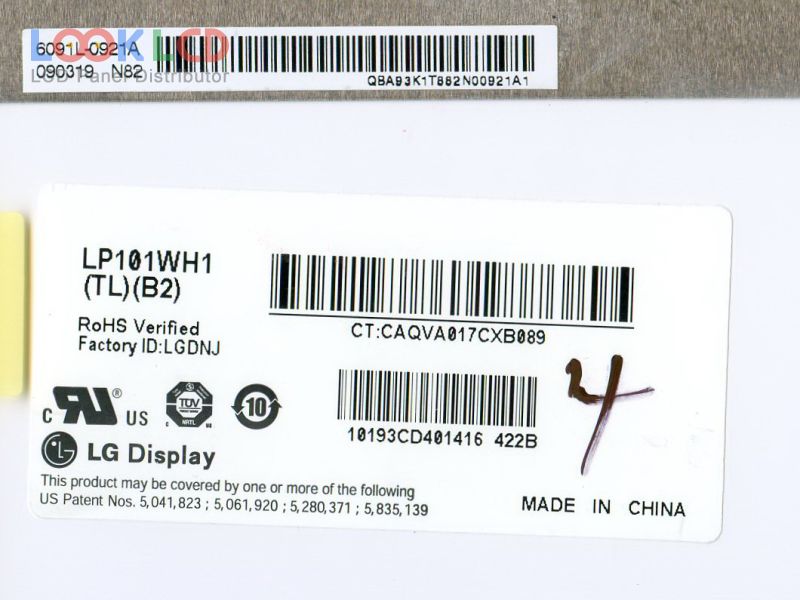

| Artikelnummer | LP101WH1-TLB2 |
| Marke | LG Display |
| Größe | 10.1 |
| Anwendung | NBPC |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | 200 |
| CR | 300:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | LG Display |
| Panel-Modell | LP101WH1-TLB2 1 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.1 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 222.73×125.22 mm |
| Umriss | 235×143×5.2 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Antiglare |
| Helligkeit | 200 cd/m² (Typ.) |
| Kontrastverhältnis | 300:1 (Min.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 16 (Typ.)(Tr+Td) |
| Blickwinkel | 30/30/10/20 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 4 stringsWLEDEmbedded (LED Driver) |

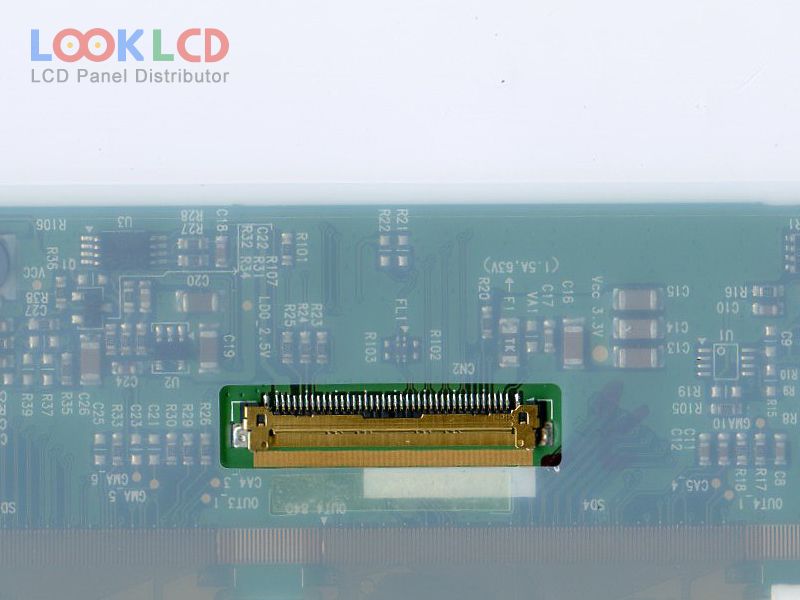

| Signalschnittstelle | LVDS (1 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
