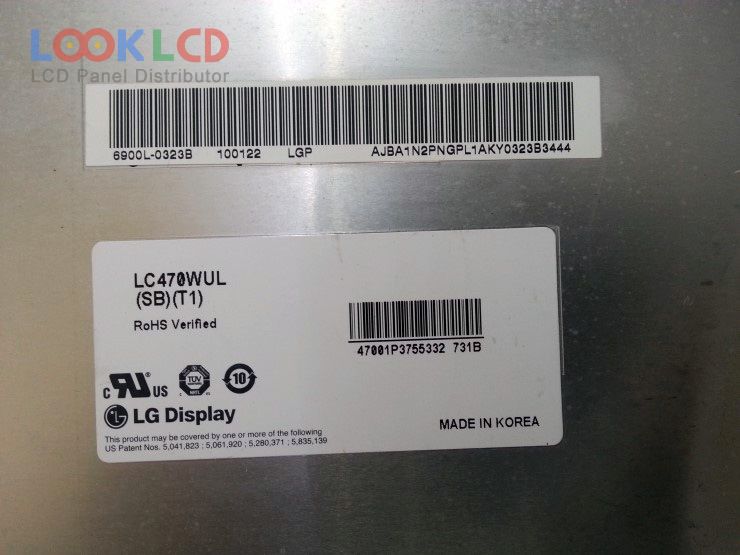

| Artikelnummer | LC470WUL-SBT1 |
| Marke | LG Display |
| Größe | 47 |
| Anwendung | LCTV |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 450 |
| CR | 1300:1 |
| Farben | 16.7M/1.06B |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | LG Display |
| Panel-Modell | LC470WUL-SBT1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 47 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | S-IPS, Normally Black, Transmissive |
| aktiver Bereich | 1039.68×584.82 mm |
| Umriss | 1083.6×628.8 mm |
| Oberfläche | Antiglare (Haze 10%), Hard coating (3H) |
| Helligkeit | 450 cd/m² (Typ.) |
| Kontrastverhältnis | 1300:1 (Typ.) |
| Farben anzeigen | 16.7M/1.06B (8-bit / 8-bit + FRC) |
| Reaktionszeit | 5 (Typ.)(G to G); 8 (Typ.)(MPRT) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 120Hz+120Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (4 ch, 10-bit), 92 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | LCTV |
