| Artikelnummer | LB121S1-A2 |
| Marke | LG Display |
| Größe | 12.1 |
| Anwendung | IA |
| Auflösung | 800×600 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 200:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | TTL |
| Panel-Marke | LG LCD Inc. |
| Panel-Modell | LB121S1-A2 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 12.1 inch |
| Auflösung | 800(RGB)×600 , SVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 246×184.5 mm |
| Umriss | 280×218×12.5 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 200:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 20/35 (Typ.)(Tr/Td) |
| Blickwinkel | 60/60/40/55 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 2 pcsCCFLWithout Driver |

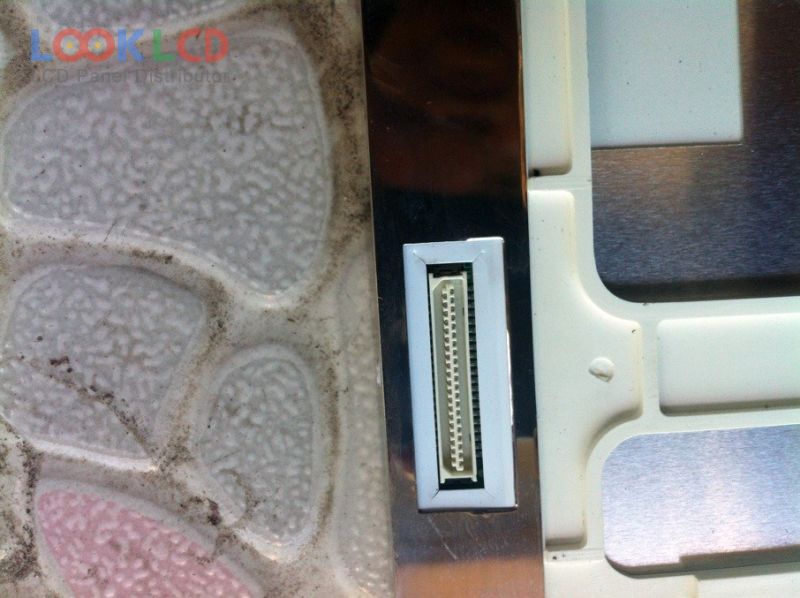

| Signalschnittstelle | Parallel RGB (1 ch, 6-bit), 41 pins |
| Eingangsspannung | 3.3V (Typ.)(VCC) |
| Anwendung | IA |
