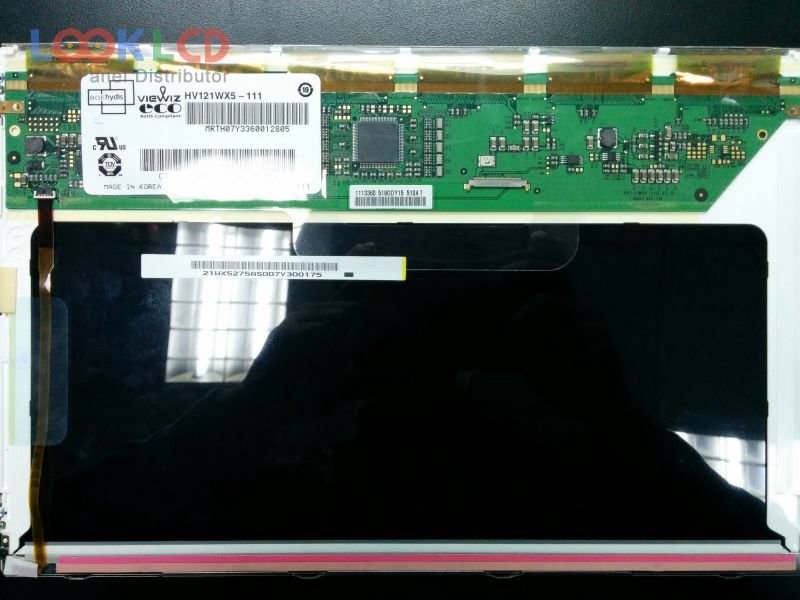

| Artikelnummer | HV121WX5-111 |
| Marke | HYDIS |
| Größe | 12.1 |
| Anwendung | PAD |
| Auflösung | 1280×800 |
| Komposition | LCM |
| Helligkeit | 220 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | BOE HYDIS |

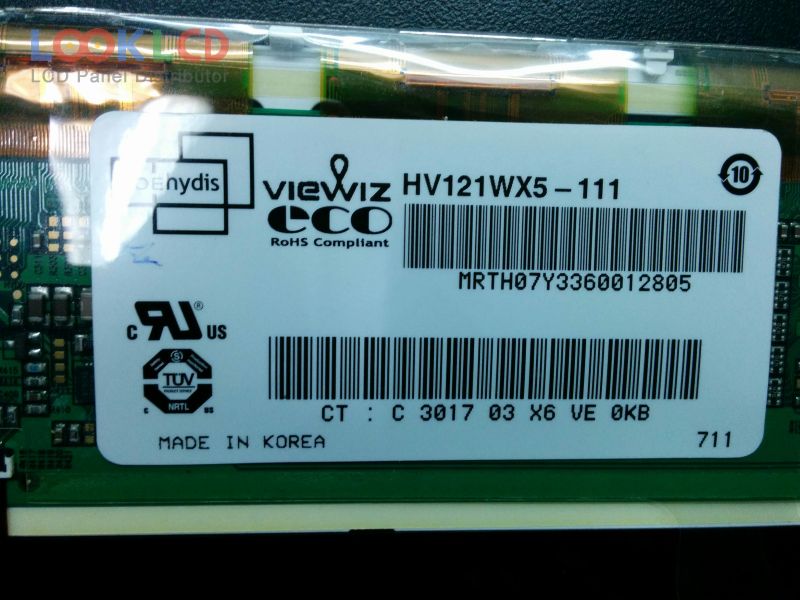

| Panel-Modell | HV121WX5-111 3 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 12.1 inch |
| Auflösung | 1280(RGB)×800 , WXGA |
| Anzeigemodus | AFFS, Normally Black, Transmissive |
| aktiver Bereich | 261.12×163.2 mm |
| Umriss | 276.8×180×6.8 mm |
| Oberfläche | Antireflection |
| Helligkeit | 220 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 30 (Typ.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 12S4PWLEDEmbedded (LED Driver) |

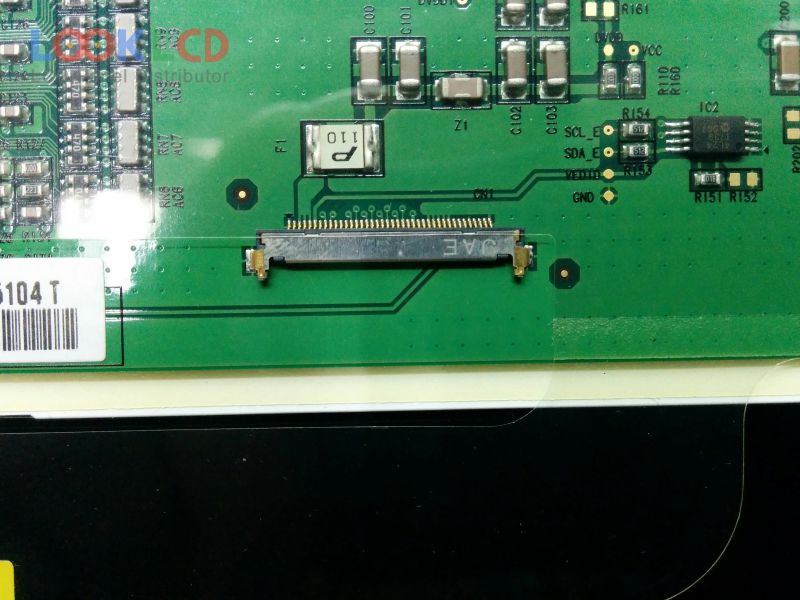

| Signalschnittstelle | LVDS (1 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | PAD |
