| Artikelnummer | G321EV5R000 |
| Marke | SII |
| Größe | 4.7 |
| Anwendung | IA |
| Auflösung | 320×240 |
| Komposition | LCM |
| Helligkeit | 90 |
| CR | 8:1 |
| Farben | Monochrome |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | Parallel Data |
| Panel-Marke | SII |
| Panel-Modell | G321EV5R000 |
| Plattentyp | FSTN-LCD , LCM |
| Panelgröße | 4.7 inch |
| Auflösung | 320×240 , QVGA |
| Anzeigemodus | STN, Black/White (Negative), Transmissive |
| aktiver Bereich | 95.97×71.97 mm |
| Umriss | 150×96×14 mm |
| Oberfläche | |
| Helligkeit | 90 cd/m² (Typ.) |
| Kontrastverhältnis | 8:1 (Typ.) |
| Farben anzeigen | Monochrome |
| Reaktionszeit | 230/150 (Typ.)(Tr/Td) |
| Blickwinkel | |
| Frequenz | 70Hz |

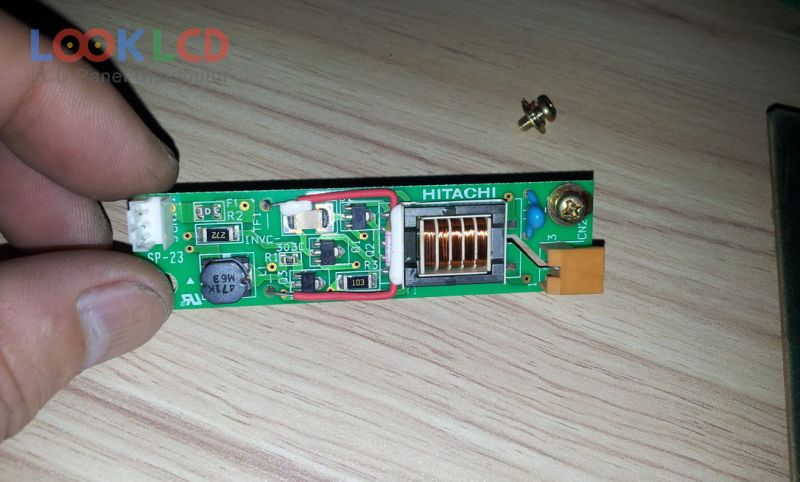

| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | Parallel Data (1ch, 4-bit), 14 pins |
| Eingangsspannung | 5.0V (Typ.) |
| Anwendung | IA |
