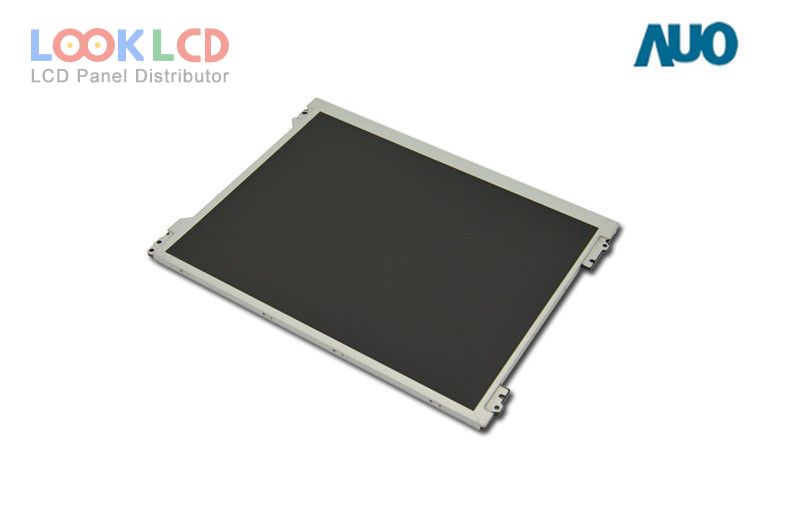

| Artikelnummer | G121XTN01.0 |
| Marke | AUO |
| Größe | 12.1 |
| Anwendung | IA |
| Auflösung | 1024×768 |
| Komposition | LCM |
| Helligkeit | 500 |
| CR | 700:1 |
| Farben | 262K/16.2M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | AUO |
| Panel-Modell | G121XTN01.0 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 12.1 inch |
| Auflösung | 1024(2)×768(2) , XGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 245.76×184.32 mm |
| Umriss | 279×209×9 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 500 cd/m² (Typ.) |
| Kontrastverhältnis | 700:1 (Typ.) |
| Farben anzeigen | 262K/16.2M (6-bit / 6-bit + FRC), CIE193172% |
| Reaktionszeit | 25/10 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 6S3PWLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (1 ch, 6/8-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
