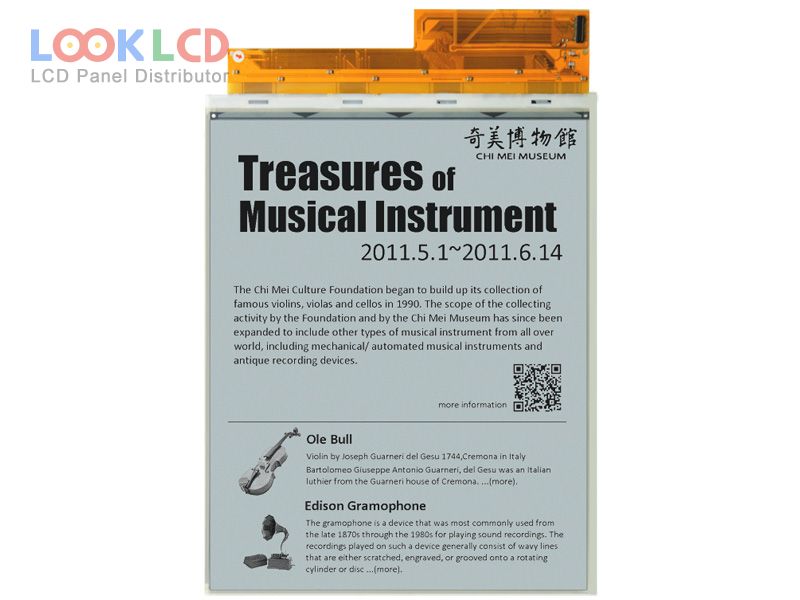

| Artikelnummer | EZ102AT011 |
| Marke | PDI |
| Größe | 10.2 |
| Anwendung | |
| Auflösung | 1024×1280 |
| Komposition | EPD |
| Helligkeit | |
| CR | |
| Farben | Monochrome |
| Hintergrundbeleuchtung | No B/L |
| Schnittstelle | Parallel Data |
| Panel-Marke | PDI |
| Panel-Modell | EZ102AT011 |
| Plattentyp | EPD , EPD |
| Panelgröße | 10.2 inch |
| Auflösung | 1024×1280 , SXGA |
| aktiver Bereich | 162.56×203.2 mm |
| Umriss | 171.76×218.3×1.4 mm |
| Oberfläche | Antiglare |
| Helligkeit | |
| Kontrastverhältnis | 10:1 (Typ.)(Reflective) |
| Farben anzeigen | Monochrome (1-bit) |
| Blickwinkel | |
| Signalschnittstelle | Parallel Data (8-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.)(VDD) |
