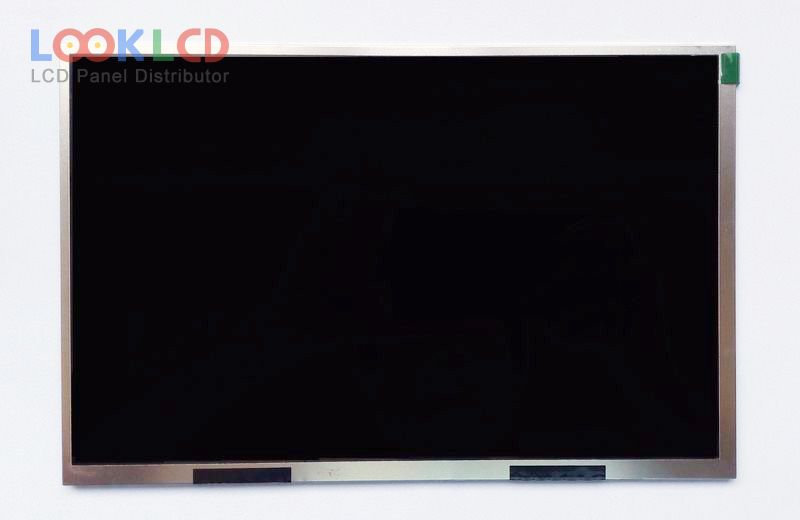

| Artikelnummer | DLC1010GIG |
| Marke | Other |
| Größe | 10.1 |
| Anwendung | CNS |
| Auflösung | 1280×800 |
| Komposition | LCM |
| Helligkeit | 500 |
| CR | 800:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | DLC |
| Panel-Modell | DLC1010GIG 1 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.1 inch |
| Auflösung | 1280(RGB)×800 , WXGA |
| Anzeigemodus | IPS, Normally Black, Transmissive |
| aktiver Bereich | 216.96×135.6 mm |
| Umriss | 229.46×149.1×7.16 mm |
| Oberfläche | Hard coating |
| Helligkeit | 500 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193150% |
| Reaktionszeit | 10/15 (Typ.)(Tr/Td) |
| Blickwinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 40 pins |
| Eingangsspannung | 2.5/8.2/22.0/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Anwendung | CNS |
| B101AW01 V2 HW0A | AUO | 10.1 | 1024×576 |
| DLC1010AZG-1 | Other | 10.1 | 1024×600 |
| DLC1010CIG-6 | Other | 10.1 | 1280×800 |
| DLC1010DZG-T-8 | Other | 10.1 | 1280×800 |
| DLC1010GIG | Other | 10.1 | 1280×800 |
| DLC1040ABG-2 | Other | 10.4 | 800×600 |
| DLC1040ABG-3 | Other | 10.4 | 800×600 |
| DLC1040ABG-T | Other | 10.4 | 800×600 |
| DLC1040ABG-T-2 | Other | 10.4 | 800×600 |
| LTN101AL03-001 | Samsung | 10.1 | 1280×800 |
| C070VVN03.0 | AUO | 7.0 | 800×480 |
| C070VW04 V5 | AUO | 7.0 | 800×480 |
| CLAA061LA0DCW | CPT | 6.1 | 800×480 |
| LA050WQ2-SD02 | LG Display | 5.0 | 480×240 |
| LB035Q03-TD02 | LG Display | 3.5 | 320×240 |
| LB058WQ1-SD02 | LG Display | 5.8 | 400×240 |
| LTE052T-4301-1 | TPO | 5.0 | 320×234 |
| PW065XS1 | E Ink | 6.5 | 400×234 |
| TM062RDS01 | Tianma | 6.2 | 800×480 |
| YX050800480WTIPS | 5.0 | 800×480 |
