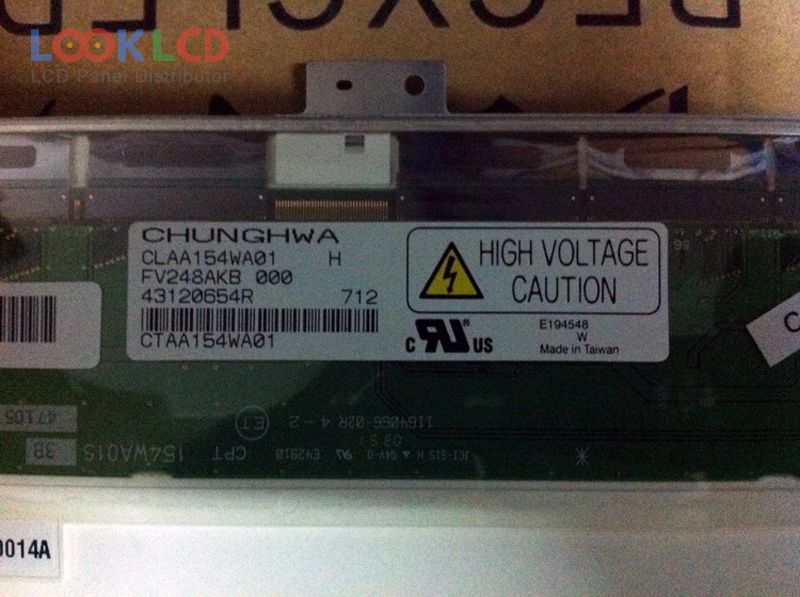

| Artikelnummer | CLAA154WA01 |
| Marke | CPT |
| Größe | 15.4 |
| Anwendung | NBPC |
| Auflösung | 1280×800 |
| Komposition | LCM |
| Helligkeit | 200 |
| CR | 400:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | CPT |
| Panel-Modell | CLAA154WA01 16 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.4 inch |
| Auflösung | 1280(RGB)×800 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 331.2×207 mm |
| Umriss | 344×243.5×6.5 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Antiglare (Haze 12%), Hard coating (3H) |
| Helligkeit | 200 cd/m² (Typ.) |
| Kontrastverhältnis | 400:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 8/20 (Typ.)(Tr/Td) |
| Blickwinkel | 65/65/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
| CLAA101FP01 XG | CPT | 10.1 | 1920×1200 |
| CLAA102NA1BCN | CPT | 10.2 | 1024×600 |
| CLAA104XA02CW | CPT | 10.4 | 1024×768 |
| CLAA133UA01 | CPT | 13.3 | 1600×900 |
| CLAA140UA01 CN | CPT | 14.0 | 1600×900 |
| CLAA141WB11 | CPT | 14.1 | 1280×800 |
| CLAA150XP01 | CPT | 15.0 | 1024×768 |
| CLAA150XP01Q | CPT | 15.0 | 1024×768 |
| CLAA154WB04A | CPT | 15.4 | 1280×800 |
| CLAA185WA02 | CPT | 18.5 | 1366×768 |
| B141PW04 V0 HW2A | AUO | 14.1 | 1440×900 |
| BT156GW02 V.0 | Innolux | 15.6 | 1366×768 |
| LP121X04-A2 | LG Display | 12.1 | 1024×768 |
| LP125WH2-TLFA | LG Display | 12.5 | 1366×768 |
| LQ154M1LW02 | SHARP | 15.4 | 1920×1200 |
| LQ164M1LG4B | SHARP | 16.4 | 1920×1080 |
| LTN133AT23-803 | Samsung | 13.3 | 1366×768 |
| LTN141BT06-002 | Samsung | 14.1 | 1440×900 |
| N133HSE-EB1 | Innolux | 13.3 | 1920×1080 |
| N133I1-L01 | Innolux | 13.3 | 1280×800 |
