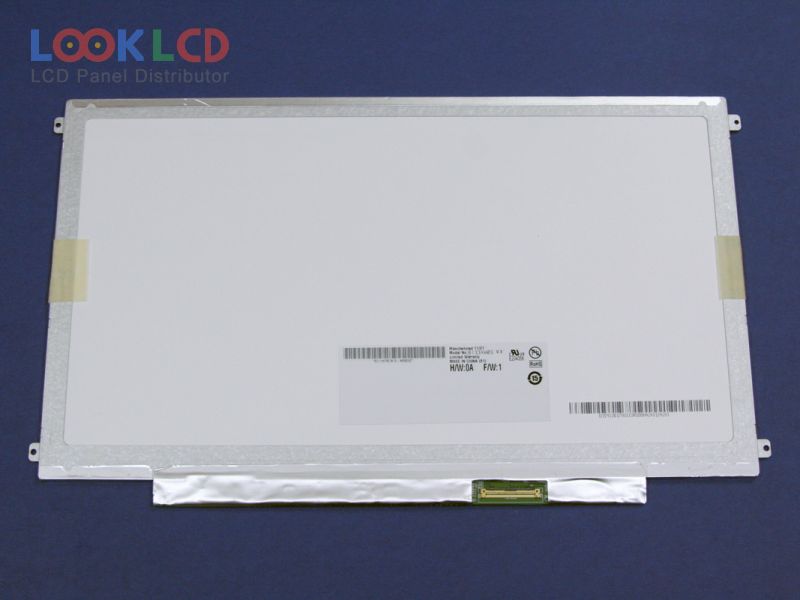

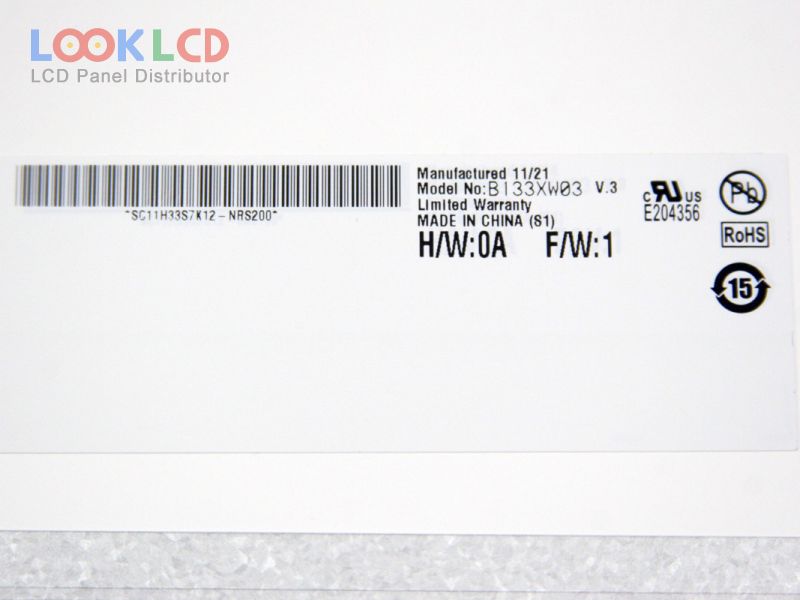

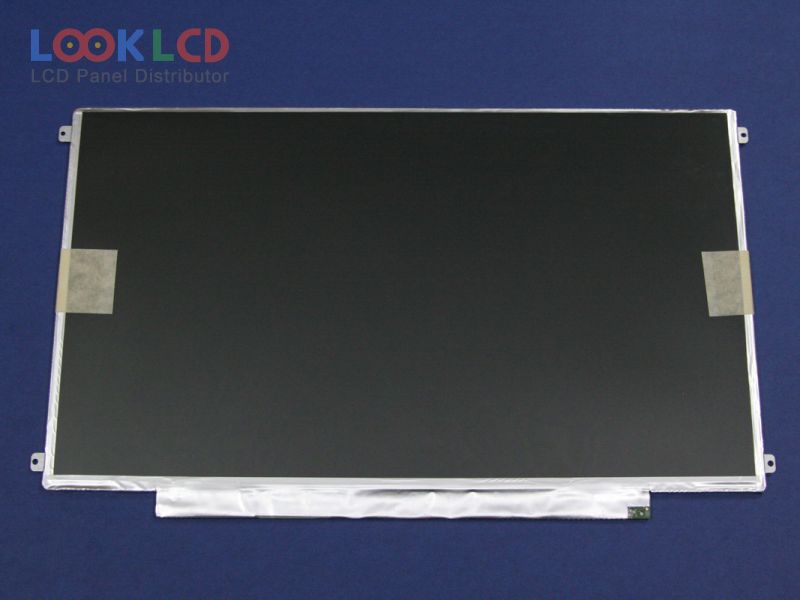

| Artikelnummer | B133XW03 V3 |
| Marke | AUO |
| Größe | 13.3 |
| Anwendung | NBPC |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | 200 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | AUO |
| Panel-Modell | B133XW03 V3 1 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 13.3 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 293.42×164.97 mm |
| Umriss | 317.2×188.7×3.6 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Glare (Haze 0%), Hard coating (3H) |
| Helligkeit | 200 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193145% |
| Reaktionszeit | 8 (Typ.)(Tr+Td) |
| Blickwinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
| B133XTN01.5 | AUO | 13.3 | 1366×768 |
| B133XW01 V1 | AUO | 13.3 | 1366×768 |
| B133XW01 V2 | AUO | 13.3 | 1366×768 |
| B133XW01 V3 | AUO | 13.3 | 1366×768 |
| B133XW01 V7 | AUO | 13.3 | 1366×768 |
| B133XW03 V0 | AUO | 13.3 | 1366×768 |
| B133XW03 V1 | AUO | 13.3 | 1366×768 |
| B133XW03 V3 | AUO | 13.3 | 1366×768 |
| B133XW07 V0 | AUO | 13.3 | 1366×768 |
| B133XW07 V2 | AUO | 13.3 | 1366×768 |
| B154EW02 V6 | AUO | 15.4 | 1280×800 |
| BT140GW01 V.A | Innolux | 14.0 | 1366×768 |
| LP140WH2-TLB1 | LG Display | 14.0 | 1366×768 |
| LP141WX5-TPP1 | LG Display | 14.1 | 1280×800 |
| LP156WF4-SPU1 | LG Display | 15.6 | 1920×1080 |
| LP173WF1-TLC1 | LG Display | 17.3 | 1920×1080 |
| LQ156Z1JW03 | SHARP | 15.6 | 3200×1800 |
| LTD121EA3KZ | TOSHIBA | 12.1 | 1024×768 |
| N133BGE-L41 | Innolux | 13.3 | 1366×768 |
| N150P5-L02 | Innolux | 15.0 | 1400×1050 |
