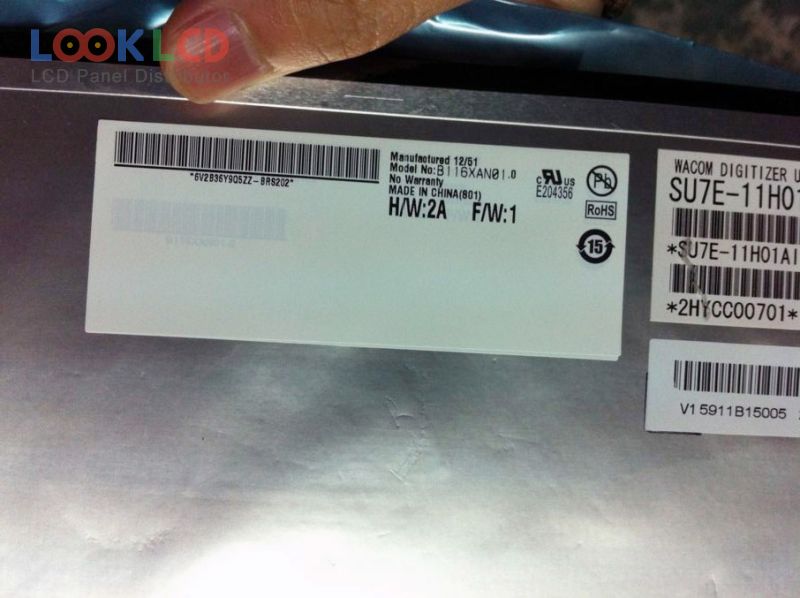

| Artikelnummer | B116XAN01.0 |
| Marke | AUO |
| Größe | 11.6 |
| Anwendung | PAD |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | 700 |
| CR | 800:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | MIPI |
| Panel-Marke | AUO |
| Panel-Modell | B116XAN01.0 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 11.6 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | AHVA, Normally Black, Transmissive |
| aktiver Bereich | 256.125×144 mm |
| Umriss | 267.17×157.31×4.74 mm |
| Oberfläche | |
| Helligkeit | 700 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Min.) |
| Farben anzeigen | 16.7M (8-bit), CIE193150% |
| Reaktionszeit | 30 (Max.)(Tr+Td) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 8S6PWLEDWithout Driver |
| Signalschnittstelle | MIPI (4 data lanes), 45 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | PAD |
| B116XAN01.0 | AUO | 11.6 | 1366×768 |
| B116XAN03.1 HW1A | AUO | 11.6 | 1366×768 |
| B116XAT03.1 | AUO | 11.6 | 1366×768 |
| B116XTK01.1 | AUO | 11.6 | 1366×768 |
| B116XTN01.0 HW5A | AUO | 11.6 | 1366×768 |
| B116XTN02.3 HW4A | AUO | 11.6 | 1366×768 |
| B116XTT01.0 | AUO | 11.6 | 1366×768 |
| B116XW02 V1 | AUO | 11.6 | 1366×768 |
| B116XW03 V0 | AUO | 11.6 | 1366×768 |
| B116XW03 V1 | AUO | 11.6 | 1366×768 |
| B116XAN03.0 HW3A | AUO | 11.6 | 1366×768 |
| HJ080IA-01E | Innolux | 8.0 | 1024×768 |
| HSD101PWW2-A00 | HannStar | 10.1 | 1280×800 |
| LD101WX2-SLP1 | LG Display | 10.1 | 1280×800 |
| LP125WH2-SPM2 | LG Display | 12.5 | 1366×768 |
| LTN097XL02-A01 | Samsung | 9.7 | 1024×768 |
| Q070LRE-LA1 | Innolux | 7.0 | 1024×600 |
| VVX07F023B00 | Panasonic | 7.0 | 1200×1920 |
| VVX09F035M20 | Panasonic | 8.9 | 1920×1200 |
| YX101UWX002C | SEBO | 10.1 | 1280×800 |
