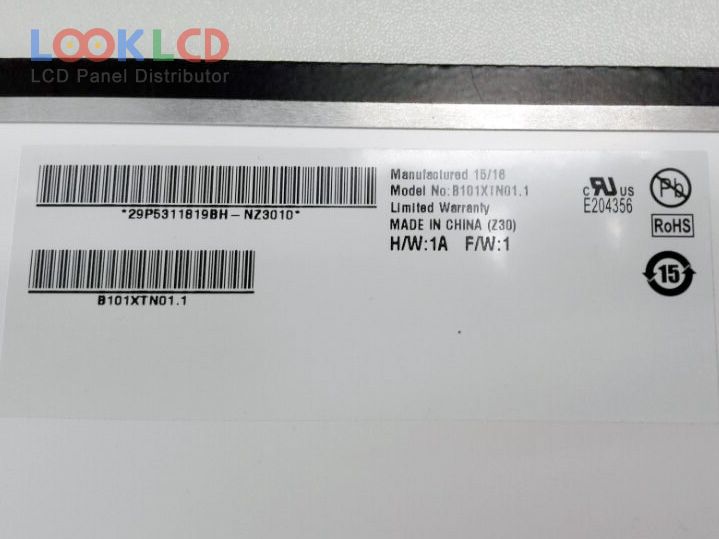

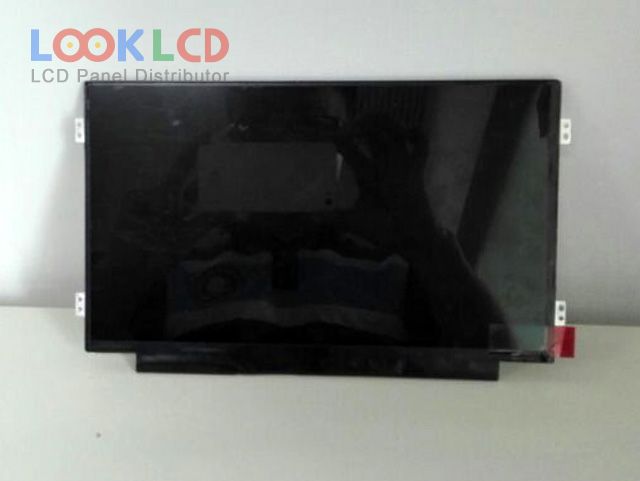

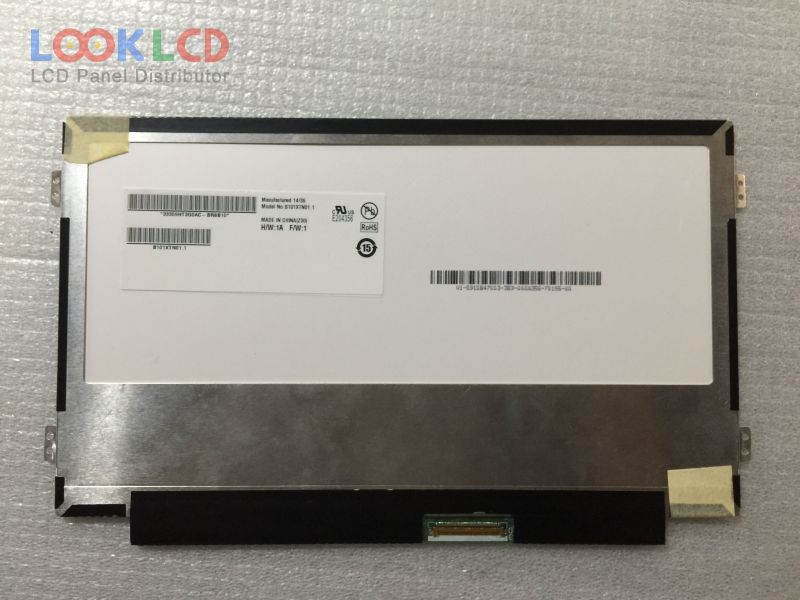

| Artikelnummer | B101XTN01.1 |
| Marke | AUO |
| Größe | 10.1 |
| Anwendung | NBPC |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | 200 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | AUO |
| Panel-Modell | B101XTN01.1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.1 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 222.52×125.11 mm |
| Umriss | 243×146.5×3.6 mm |
| Formstil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 200 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193145% |
| Reaktionszeit | 8 (Typ.)(Tr+Td) |
| Blickwinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
