| Artikelnummer | B101UAN01.1 |
| Marke | AUO |
| Größe | 10.1 |
| Anwendung | PAD |
| Auflösung | 1920×1200 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 800:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | AU Optronics |

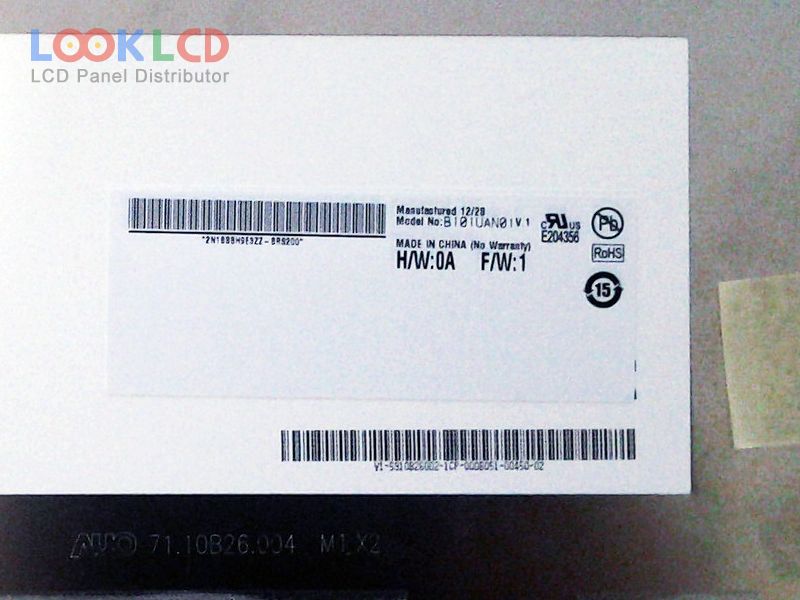

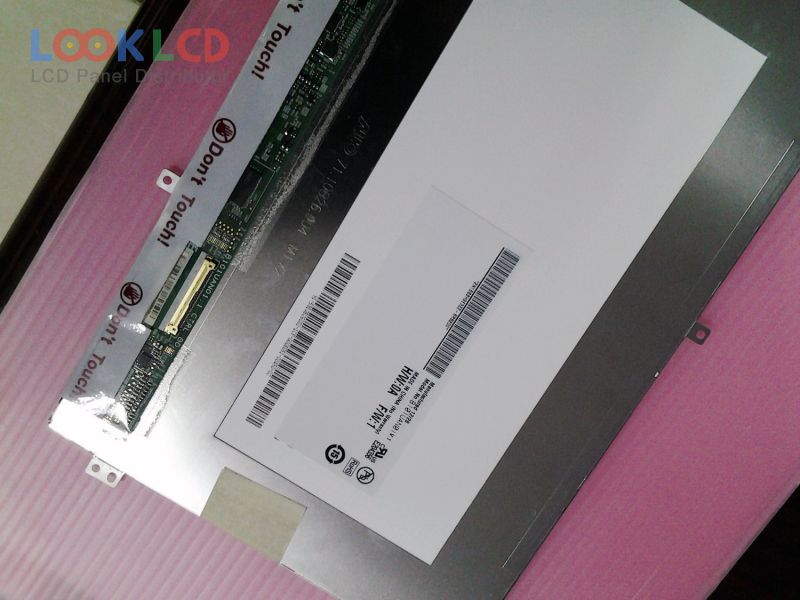

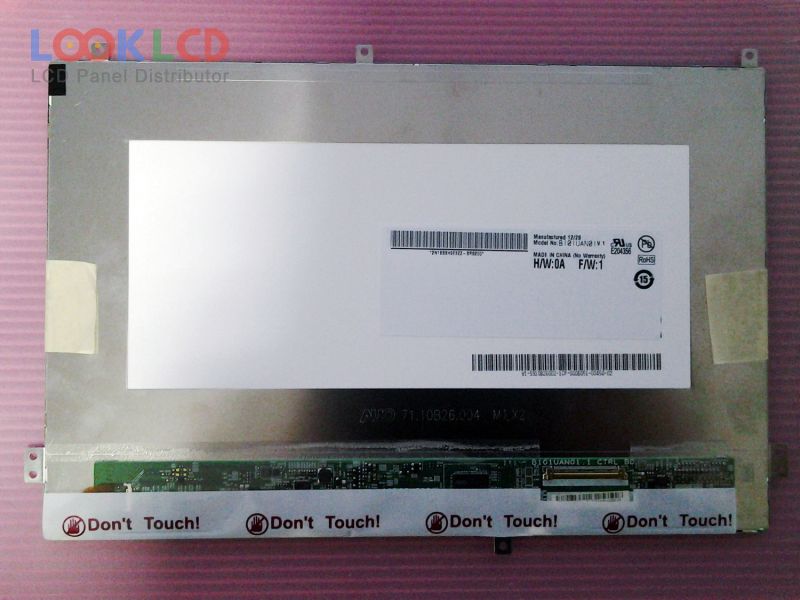

| Panel-Modell | B101UAN01.1 1 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.1 inch |
| Auflösung | 1920(RGB)×1200 , WUXGA |
| Anzeigemodus | AHVA, Normally Black, Transmissive |
| aktiver Bereich | 216.81×135.5 mm |
| Umriss | 228.6×149.2×4.65 mm |
| Oberfläche | Glare (Haze 0%), Hard coating (3H) |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193152% |
| Reaktionszeit | 25 (Typ.)(Tr+Td) |
| Blickwinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 5 stringsWLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (2 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | PAD |
