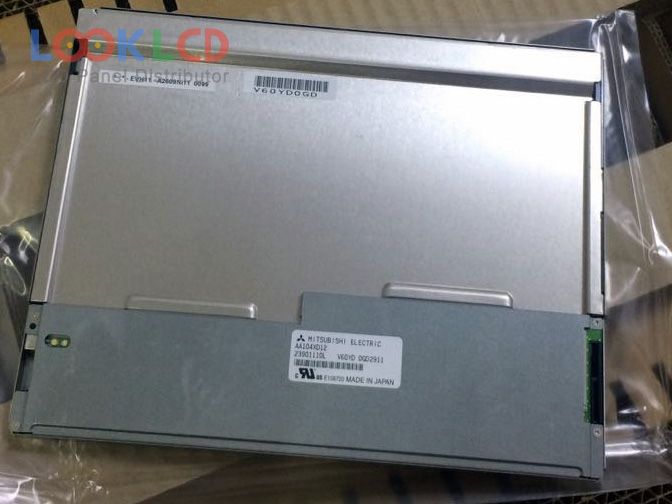

| Artikelnummer | AA104XD12--G1 |
| Marke | Mitsubishi |
| Größe | 10.4 |
| Anwendung | IA |
| Auflösung | 1024×768 |
| Komposition | LCM |
| Helligkeit | 1000 |
| CR | 700:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | Mitsubishi |
| Panel-Modell | AA104XD12--G1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.4 inch |
| Auflösung | 1024(RGB)×768 , XGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 210.4×157.8 mm |
| Umriss | 230×180.2×14.8 mm |
| Oberfläche | Hard coating (6H), Antireflection |
| Helligkeit | 1000 cd/m² (Typ.) |
| Kontrastverhältnis | 700:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 8-bit), CIE193140% |
| Reaktionszeit | 4/12 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/65/65 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 4 stringsWLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6/8-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
| AA104XD02 | Mitsubishi | 10.4 | 1024×768 |
| AA104XD12 | Mitsubishi | 10.4 | 1024×768 |
| AA104XD12--G1 | Mitsubishi | 10.4 | 1024×768 |
| AA104XG12 | Mitsubishi | 10.4 | 1024×768 |
| LB104S02-TD01 | LG Display | 10.4 | 800×600 |
| LM104VC1T51 | SHARP | 10.4 | 640×480 |
| LQ104V1DG83 | SHARP | 10.4 | 640×480 |
| LTM10C209A | TOSHIBA | 10.4 | 640×480 |
| LTM10C327F | TOSHIBA | 10.4 | 1024×768 |
| NL6448BC33-59 | NLT | 10.4 | 640×480 |
| AA043MA01 | Mitsubishi | 4.3 | 800×480 |
| AA121SP01 | Mitsubishi | 12.1 | 800×600 |
| EL640.400-CB1 | Lumineq | 9.1 | 640×400 |
| G220SW01 V0 | AUO | 22.0 | 1680×1050 |
| LM12S471 | SHARP | 12.1 | 800×600 |
| LQ9D023 | SHARP | 8.4 | 640×480 |
| MD480T640PG4 | Panasonic | 11.3 | 640×480 |
| NL6448BC33-64 | NLT | 10.4 | 640×480 |
| TX18D11VM1CAA | KOE | 7.0 | 800×480 |
| TX26D17VM2BAA | KOE | 10.4 | 640×480 |
