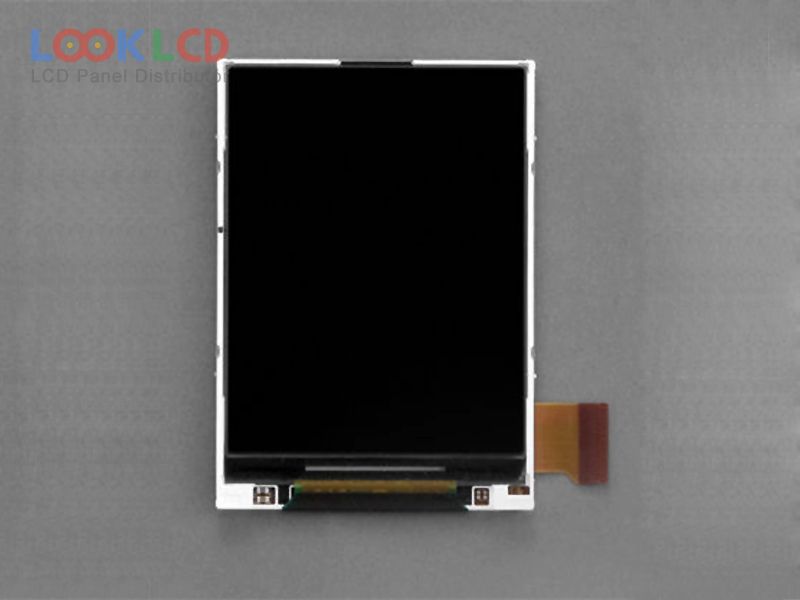

| Artikelnummer | 24QVF2H |
| Marke | SII |
| Größe | 2.4 |
| Anwendung | HHP |
| Auflösung | 240×320 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 800:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | SII |
| Panel-Modell | 24QVF2H |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 2.4 inch |
| Auflösung | 240(RGB)×320 , QVGA |
| Anzeigemodus | IPS, Normally Black, Transmissive |
| aktiver Bereich | 36.72×48.96 mm |
| Umriss | 42.72×60.4 mm |
| Oberfläche | Clear, Hard coating |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193172% |
| Reaktionszeit | 35 (Typ.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | 4S1PWLED |
| Signalschnittstelle | Parallel RGB (1 ch, 6-bit) + SPI, 35 pins |
| Eingangsspannung | (1.65~3.3)/(2.5~3.3)(IOVCC/VCI) |
| Anwendung | HHP |
