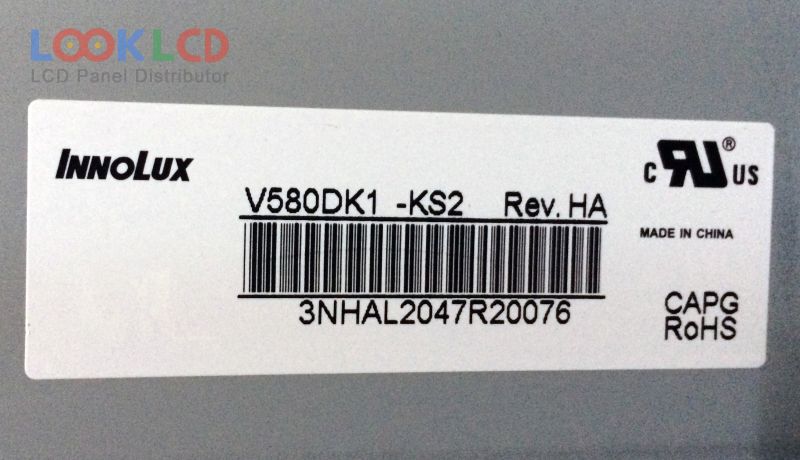

| Artikelnummer | V580DK1-KS2 |
| Marke | Innolux |
| Größe | 58 |
| Anwendung | LCTV |
| Auflösung | 3840×2160 |
| Komposition | LCM |
| Helligkeit | 360 |
| CR | 3000:1 |
| Farben | 1.07B |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | V-by-One |
| Panel-Marke | CHIMEI INNOLUX |
| Panel-Modell | V580DK1-KS2 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 58 inch |
| Auflösung | 3840(RGB)×2160 , UHD |
| Anzeigemodus | Super MVA, Normally Black, Transmissive |
| aktiver Bereich | 1270.08×721.44 mm |
| Umriss | 1290.3×744.7×28.6 mm |
| Oberfläche | Antiglare (Haze 1%), Hard coating (3H) |
| Helligkeit | 360 cd/m² (Typ.) |
| Kontrastverhältnis | 3000:1 (Typ.) |
| Farben anzeigen | 1.07B (8-bit + Hi-FRC) |
| Reaktionszeit | 6.5 (Typ.)(G to G) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 120Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | V-by-One 16 lane, 97 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | LCTV |
