| Artikelnummer | V150V1-T02 |
| Marke | Innolux |
| Größe | 15.0 |
| Anwendung | LCTV |
| Auflösung | 640×480 |
| Komposition | LCM |
| Helligkeit | 500 |
| CR | 800:1 |
| Farben | 16.2M |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | TTL |
| Panel-Marke | CMO |

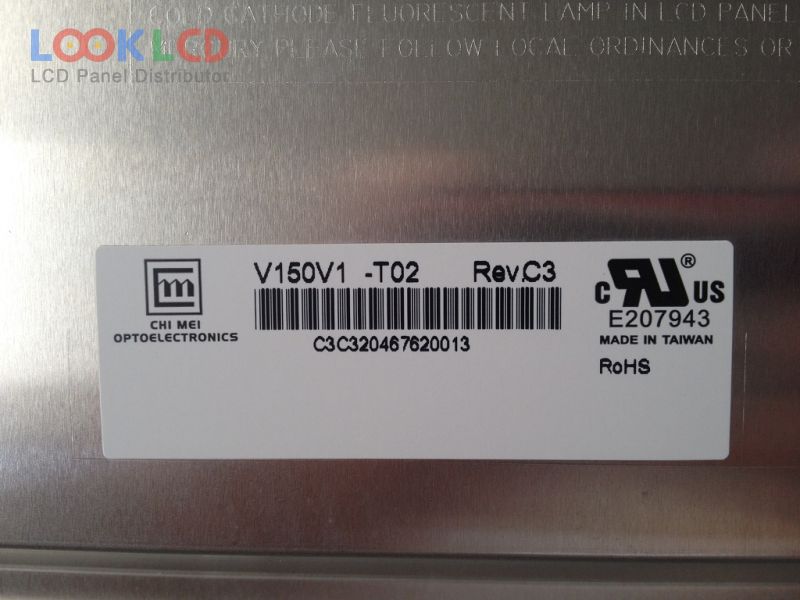

| Panel-Modell | V150V1-T02 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.0 inch |
| Auflösung | 640(RGB)×480 , VGA |
| Anzeigemodus | Super MVA, Normally Black, Transmissive |
| aktiver Bereich | 305.28×228.96 mm |
| Umriss | 331.2×256 mm |
| Oberfläche | Antiglare (Haze 25%), Hard coating (3H), Reflection 2.0% (Max.) |
| Helligkeit | 500 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 16.2M (6-bit + FRC), CIE193172% |
| Reaktionszeit | 15/10 (Typ.)(Tr/Td) |
| Blickwinkel | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 4 pcsCCFLWithout Driver |
| Signalschnittstelle | TTL (1 ch, 8-bit), 50 pins |
| Eingangsspannung | 5.0V (Typ.)(VCC) |
| Anwendung | LCTV |
