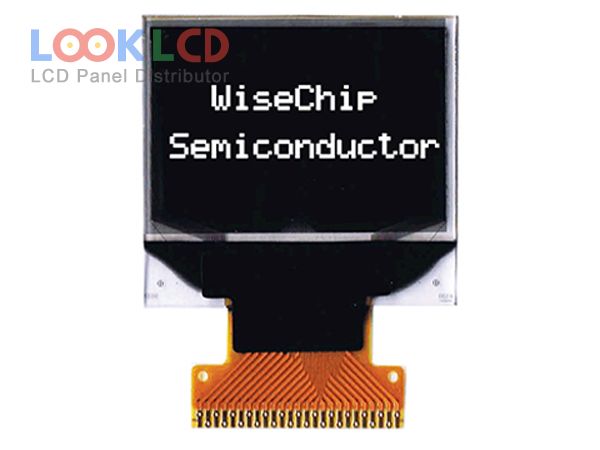

| Artikelnummer | UG-9664HSWAG01 |
| Marke | WiseChip |
| Größe | 0.95 |
| Anwendung | IA |
| Auflösung | 96×64 |
| Komposition | OLED |
| Helligkeit | 80 |
| CR | 2000:1 |
| Farben | Mono(White) |
| Hintergrundbeleuchtung | self |
| Schnittstelle | CPU/SPI/I²C |
| Panel-Marke | WiseChip |
| Panel-Modell | UG-9664HSWAG01 |
| Plattentyp | PM-OLED , OLED |
| Panelgröße | 0.95 inch |
| Auflösung | 96×64 |
| aktiver Bereich | 19.95×13.42 mm |
| Umriss | 24.9×22.95×1.5 mm |
| Oberfläche | |
| Helligkeit | 80 cd/m² (Typ.) |
| Kontrastverhältnis | 2000 : 1 (Typ.) |
| Farben anzeigen | Mono(White) (1-bit) |
| Blickwinkel | 80/80/80/80 (Min.)(L/R/U/D) |
| Treiber-IC | COG Built-in SSD1305 |
| Signalschnittstelle | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 25 pins |
| Eingangsspannung | 2.8/1.8/11V (Typ.)(VDD/VDDIO/VCC) |
| rohs: | |
| Anwendung | IA |
