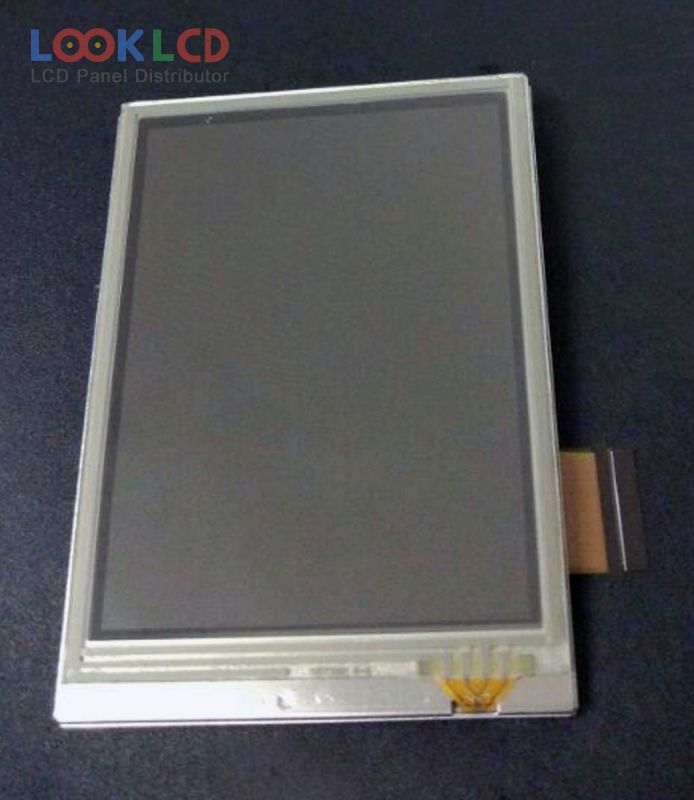

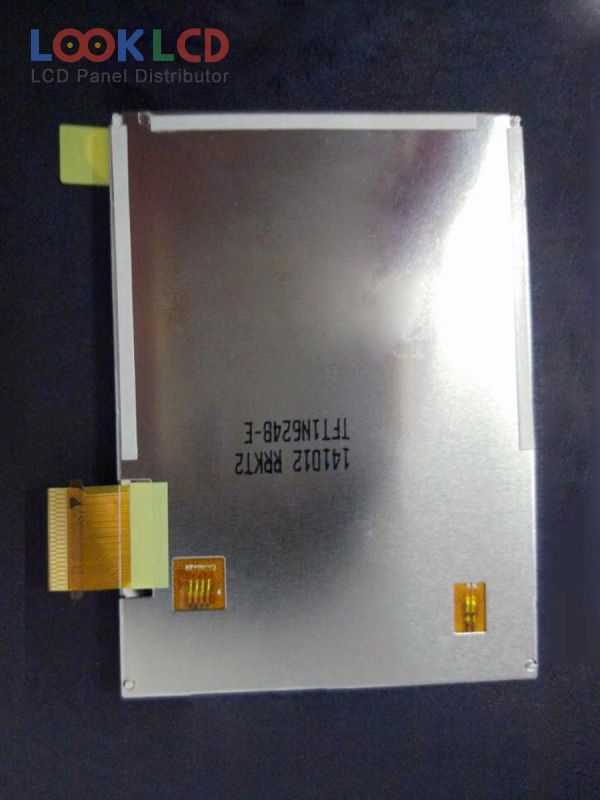

| Artikelnummer | TFT1N6248-E |
| Marke | Other |
| Größe | 3.2 |
| Anwendung | |
| Auflösung | 240×320 |
| Komposition | LCM |
| Helligkeit | 80 |
| CR | |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | TRULY |
| Panel-Modell | TFT1N6248-E |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.2 inch |
| Auflösung | 240(RGB)×320 , QVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 48.6×64.8 mm |
| Umriss | 57.54×79.2 mm |
| Oberfläche | |
| Helligkeit | 80 cd/m² (Typ.) |
| Kontrastverhältnis | |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 48 (Typ.)(Tr+Td) |
| Blickwinkel | 34/45/80/42 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 6S1PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 6-bit) + SPI, 45 pins |
| Eingangsspannung | 2.8V (Typ.) |
