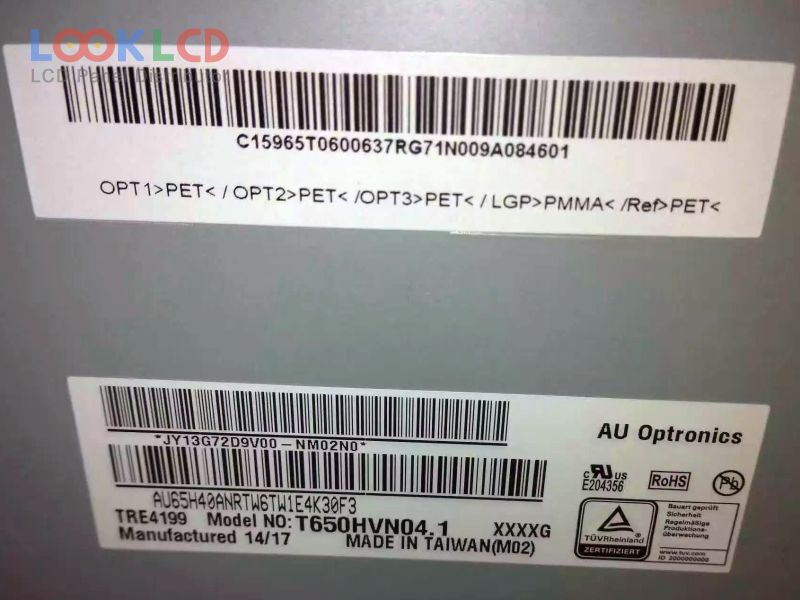

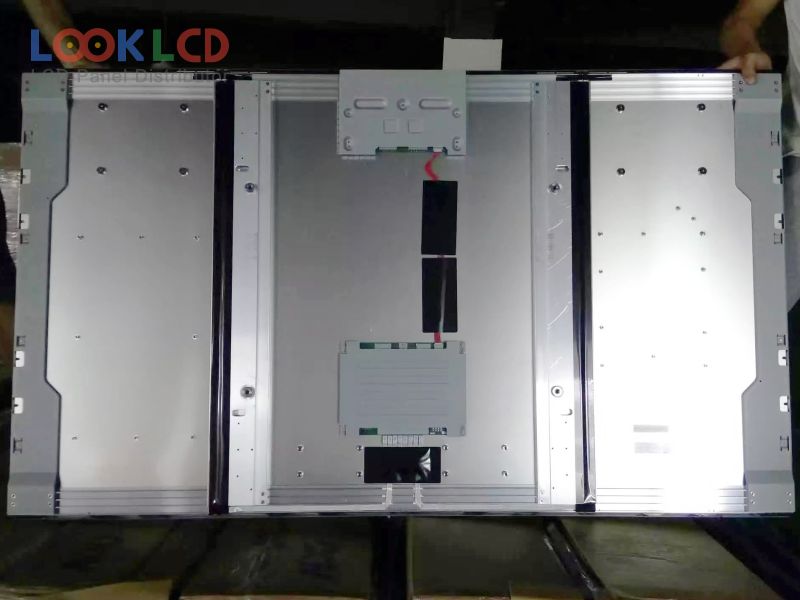

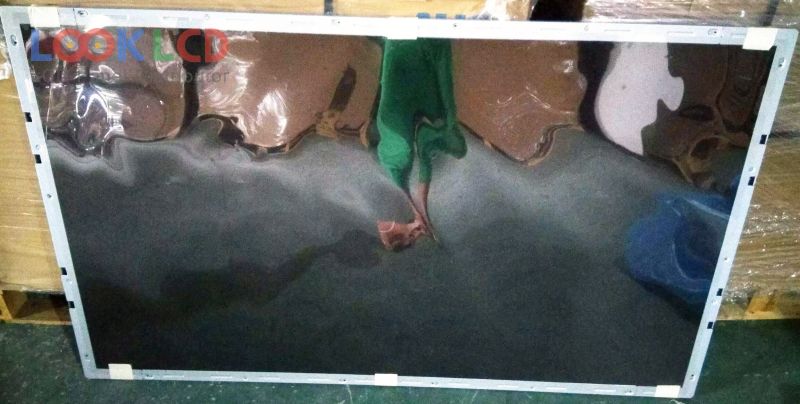

| Artikelnummer | T650HVN04.1 |
| Marke | AUO |
| Größe | 65 |
| Anwendung | LCTV |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 4000:1 |
| Farben | 16.7M/1.07B |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | AUO |
| Panel-Modell | T650HVN04.1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 65 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | AMVA3, Normally Black, Transmissive |
| aktiver Bereich | 1428.48×803.52 mm |
| Umriss | 1508×878×34 mm |
| Oberfläche | |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 4000:1 (Typ.) |
| Farben anzeigen | 16.7M/1.07B (8-bit / 8-bit + Dithering), CIE193172% |
| Reaktionszeit | 8 (Typ.)(G to G) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 120Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (4 ch, 8/10-bit), 92 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | LCTV |
