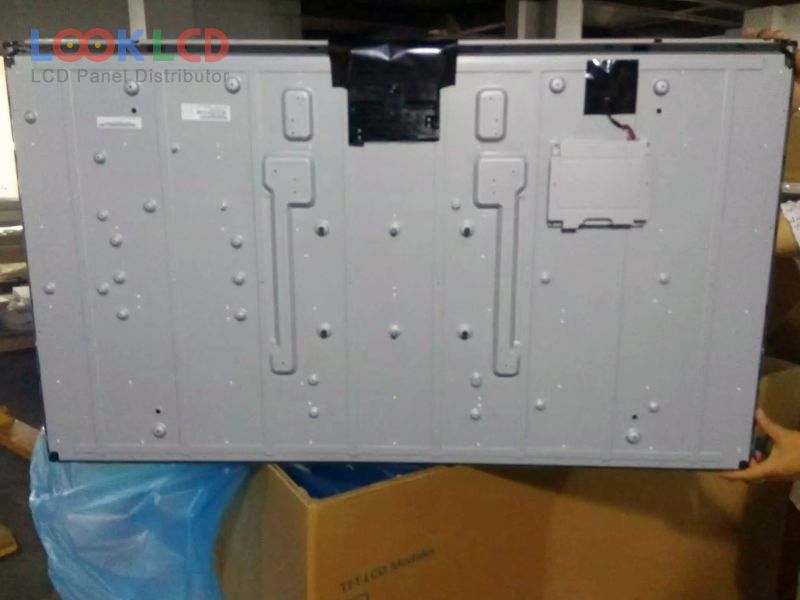

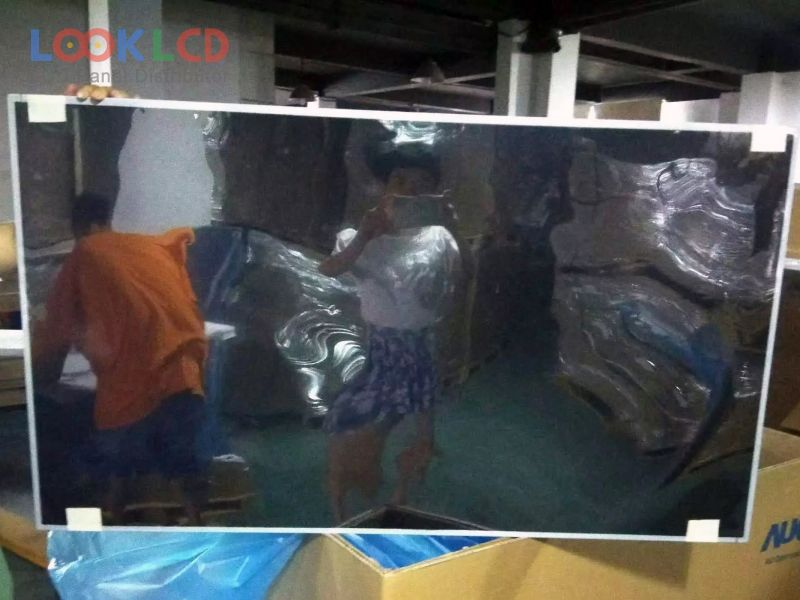

| Artikelnummer | T550HVN04.0 |
| Marke | AUO |
| Größe | 55 |
| Anwendung | LCTV |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 380 |
| CR | 4000:1 |
| Farben | 1.07B |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | AUO |
| Panel-Modell | T550HVN04.0 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 55 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | AMVA3, Normally Black, Transmissive |
| aktiver Bereich | 1209.6×680.4 mm |
| Umriss | 1236×708.9×52.6 mm |
| Oberfläche | Antiglare (Haze 2%), Hard coating (3H) |
| Helligkeit | 380 cd/m² (Typ.) |
| Kontrastverhältnis | 4000:1 (Typ.) |
| Farben anzeigen | 1.07B (10-bit), CIE193170% |
| Reaktionszeit | 6.5 (Typ.)(G to G) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 120Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (4 ch, 10-bit), 92 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | LCTV |
