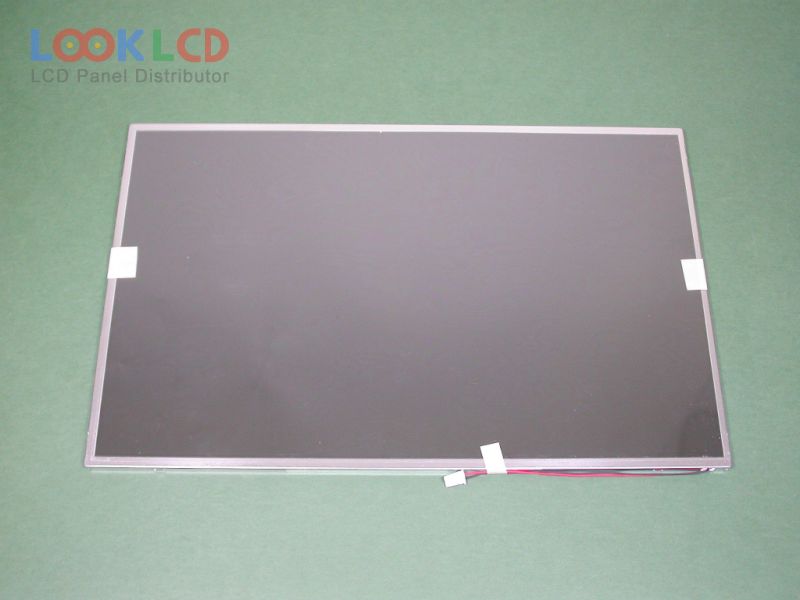

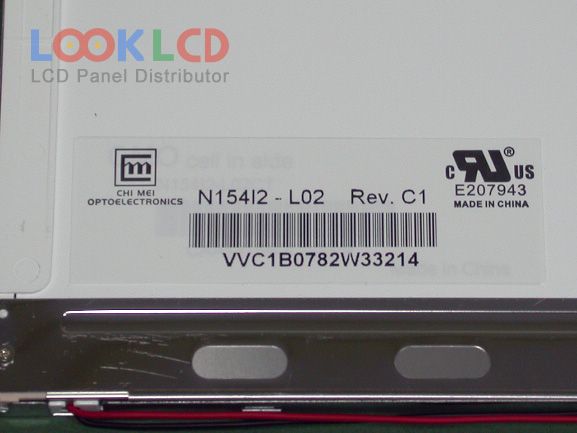

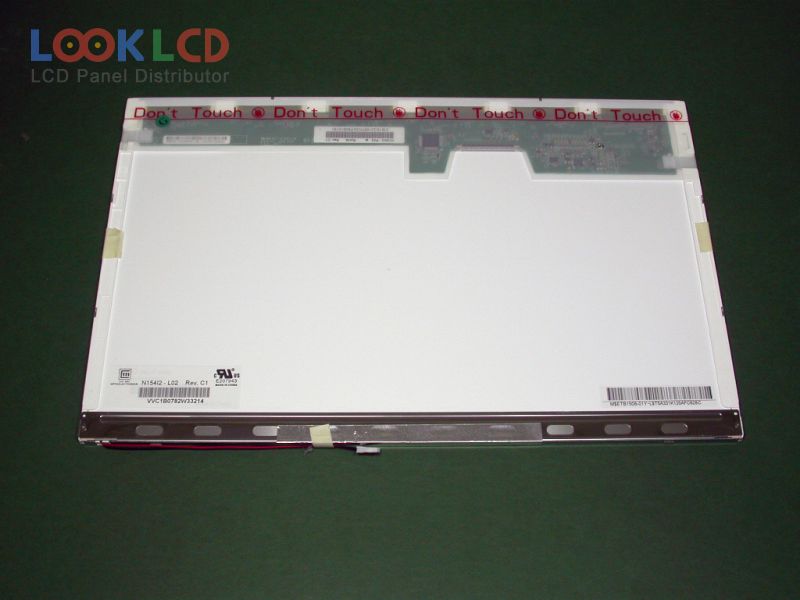

| Artikelnummer | N154I2-L02 |
| Marke | Innolux |
| Größe | 15.4 |
| Anwendung | NBPC |
| Auflösung | 1280×800 |
| Komposition | LCM |
| Helligkeit | 200 |
| CR | 400:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | CMO |
| Panel-Modell | N154I2-L02 20 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.4 inch |
| Auflösung | 1280(RGB)×800 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 331.2×207 mm |
| Umriss | 344×222×6.5 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Glare (Haze 0%), Hard coating (3H) |
| Helligkeit | 200 cd/m² (Typ.) |
| Kontrastverhältnis | 400:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193145% |
| Reaktionszeit | 5/11 (Typ.)(Tr/Td) |
| Blickwinkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
| LP154WX7-TLP2 | LG Display | 15.4 | 1280×800 |
| LTN154P3-L02 | Samsung | 15.4 | 1680×1050 |
| N154I2-L01 | Innolux | 15.4 | 1280×800 |
| N154I2-L02 | Innolux | 15.4 | 1280×800 |
| N154I2-L05 | Innolux | 15.4 | 1280×800 |
| N154I3-L03 | Innolux | 15.4 | 1280×800 |
| N154I4-L03 | Innolux | 15.4 | 1280×800 |
| N154I4-L04 | Innolux | 15.4 | 1280×800 |
| N154I5-L02 | Innolux | 15.4 | 1280×800 |
| N154I6-L03 | Innolux | 15.4 | 1280×800 |
| B156XW02 V6 | AUO | 15.6 | 1366×768 |
| HN133WU1-100 | BOE | 13.3 | 1920×1080 |
| LP133WX1-TLN3 | LG Display | 13.3 | 1280×800 |
| LP140WH2-TPS1 | LG Display | 14.0 | 1366×768 |
| LP156WH2-TLAA | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLR1 | LG Display | 15.6 | 1366×768 |
| LP171WU5-TLB1 | LG Display | 17.1 | 1920×1200 |
| LTM10C327F | TOSHIBA | 10.4 | 1024×768 |
| LTN156HT01-201 | Samsung | 15.6 | 1920×1080 |
| N140HGE-EAA | Innolux | 14.0 | 1920×1080 |
