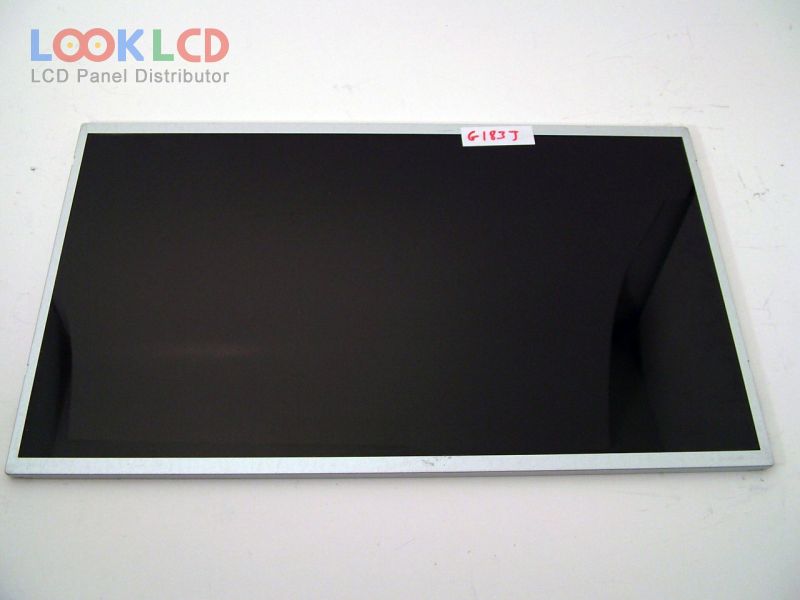

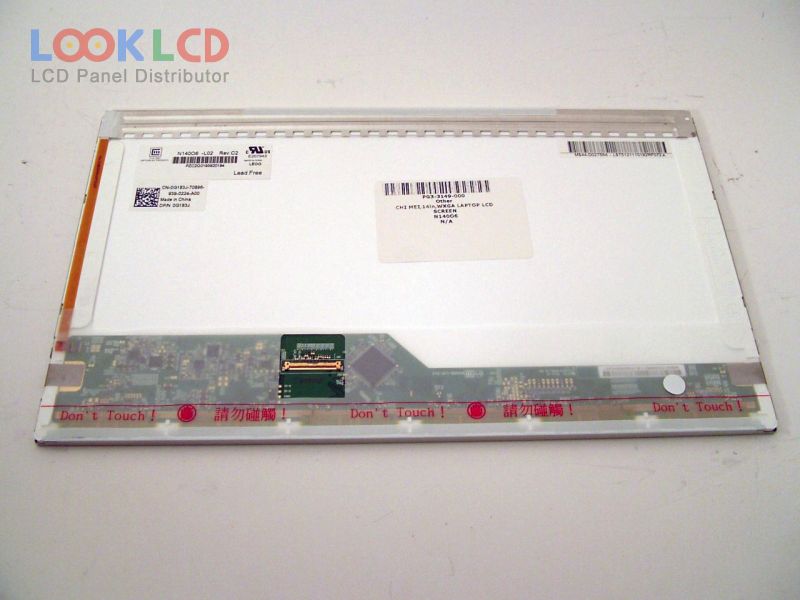

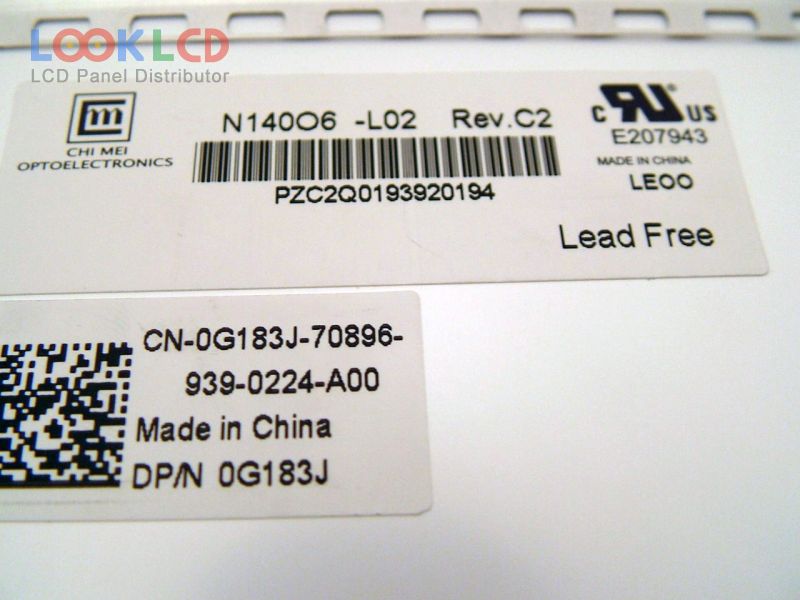

| Artikelnummer | N140O6-L02 |
| Marke | Innolux |
| Größe | 14.0 |
| Anwendung | NBPC |
| Auflösung | 1600×900 |
| Komposition | LCM |
| Helligkeit | 250 |
| CR | 650:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | CMO |
| Panel-Modell | N140O6-L02 2 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 14.0 inch |
| Auflösung | 1600(RGB)×900 , HD+ |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 309.6×174.15 mm |
| Umriss | 323.5×192×5.4 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Glare (Haze 0%), Hard coating (3H) |
| Helligkeit | 250 cd/m² (Typ.) |
| Kontrastverhältnis | 650:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193160% |
| Reaktionszeit | 3/7 (Typ.)(Tr/Td) |
| Blickwinkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 9S6PWLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (2 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
