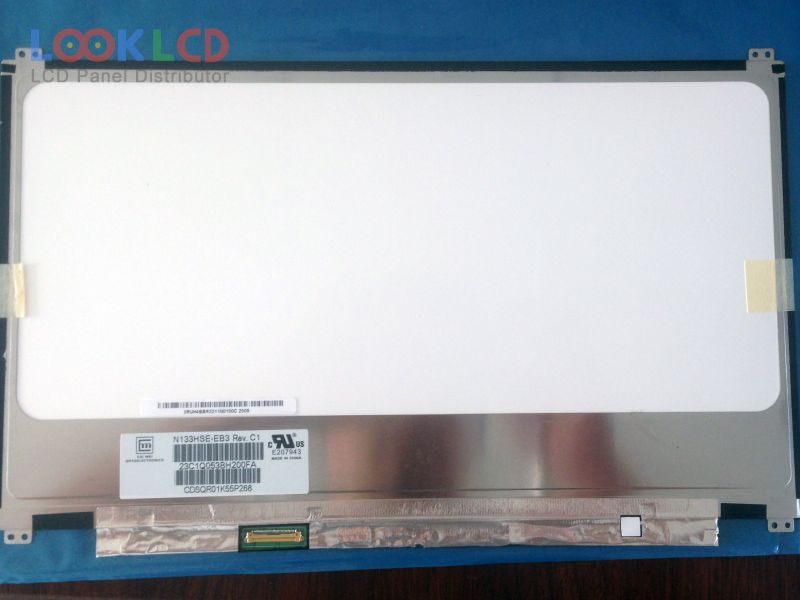

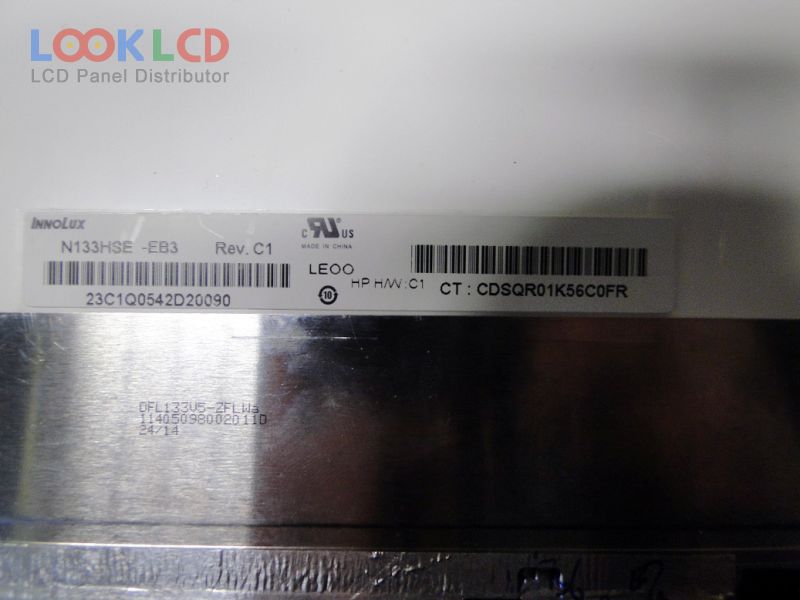

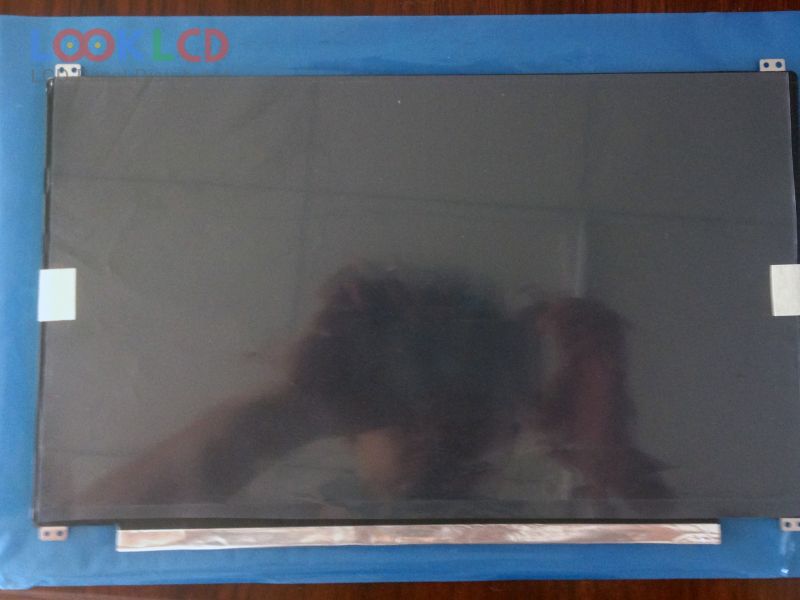

| Artikelnummer | N133HSE-EB3 |
| Marke | Innolux |
| Größe | 13.3 |
| Anwendung | NBPC |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 800:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | eDP |
| Panel-Marke | CHIMEI INNOLUX |
| Panel-Modell | N133HSE-EB3 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 13.3 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | AAS, Normally Black, Transmissive |
| aktiver Bereich | 293.76×165.24 mm |
| Umriss | 305.35×187.82×2.85 mm |
| Formstil | Slim (PCBA Flat, Depth ≤3.2mm) |
| Oberfläche | Glare (Haze 0%), Hard coating (3H) |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193172% |
| Reaktionszeit | 14/11 (Typ.)(Tr/Td) |
| Blickwinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | eDP (2 Lanes), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
