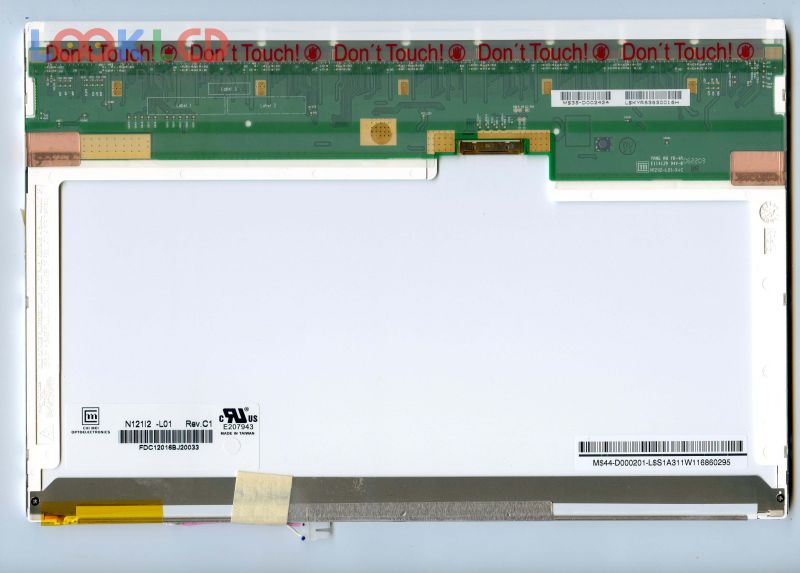

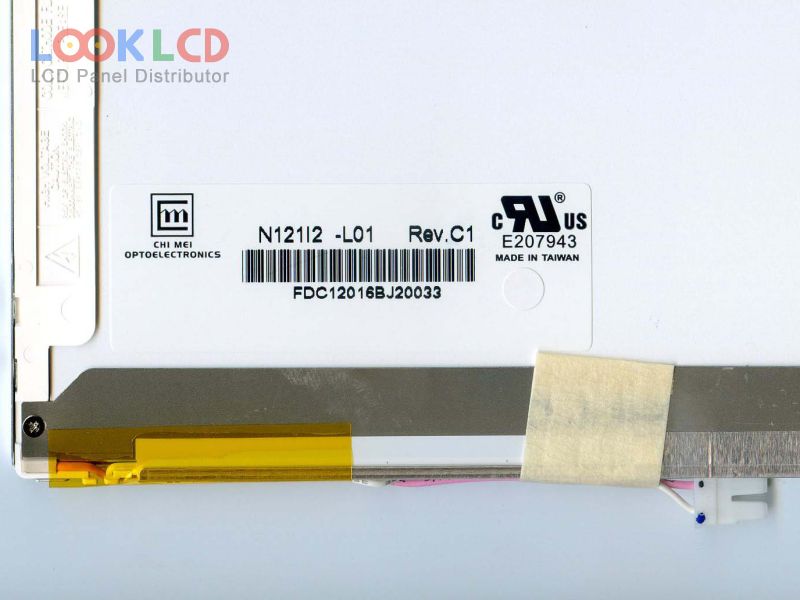

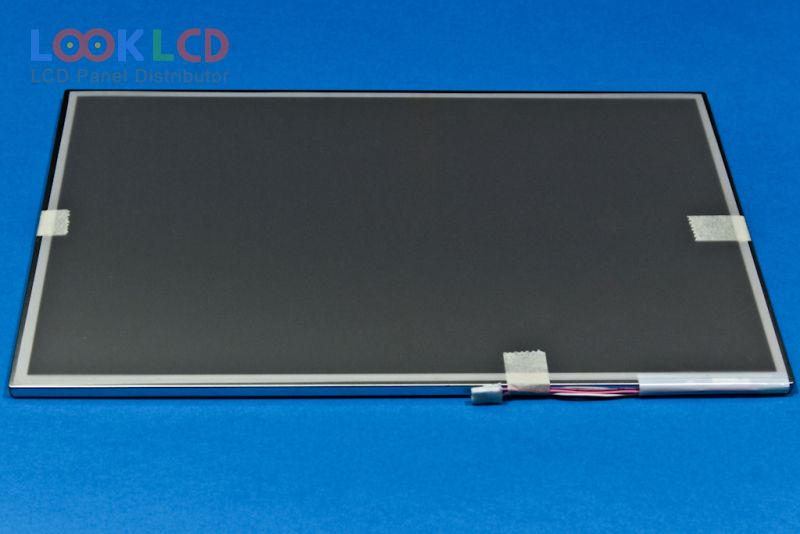

| Artikelnummer | N121I2-L01 |
| Marke | Innolux |
| Größe | 12.1 |
| Anwendung | NBPC |
| Auflösung | 1280×800 |
| Komposition | LCM |
| Helligkeit | 200 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | CMO |
| Panel-Modell | N121I2-L01 2 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 12.1 inch |
| Auflösung | 1280(RGB)×800 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 261.12×163.2 mm |
| Umriss | 275.8×178×5.5 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Glare (Haze 0%), Hard coating (2H) |
| Helligkeit | 200 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 5/11 (Typ.)(Tr/Td) |
| Blickwinkel | 60/60/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
| M121MNS1 R0 | IVO | 12.1 | 800×600 |
| N121I2-L01 | Innolux | 12.1 | 1280×800 |
| N121I3-L01 | Innolux | 12.1 | 1280×800 |
| N121I3-L03 | Innolux | 12.1 | 1280×800 |
| N121I6-L01 | Innolux | 12.1 | 1280×800 |
| N121I7-L01 | Innolux | 12.1 | 1280×800 |
| N121IA-L02 | Innolux | 12.1 | 1280×800 |
| N121IB-L04 | Innolux | 12.1 | 1280×800 |
| N121IB-L05 Rev.C1 | Innolux | 12.1 | 1280×800 |
| N121IB-L06 | Innolux | 12.1 | 1280×800 |
| B133HAN02.1 | AUO | 13.3 | 1920×1080 |
| B140QAN01.0 | AUO | 14.0 | 2560×1440 |
| G075ADE-T01 | Innolux | 7.5 | 1200×900 |
| LP133WH1-TLC1 | LG Display | 13.3 | 1366×768 |
| LP141WP3-TLA1 | LG Display | 14.1 | 1440×900 |
| LP154WX7-TLA2 | LG Display | 15.4 | 1280×800 |
| LTD133EWZX | TOSHIBA | 13.3 | 1280×800 |
| LTN140AT02-B01 | Samsung | 14.0 | 1366×768 |
| LTN141AT15-001 | Samsung | 14.1 | 1280×800 |
| LTN150PG-L04 | Samsung | 15.0 | 1400×1050 |
