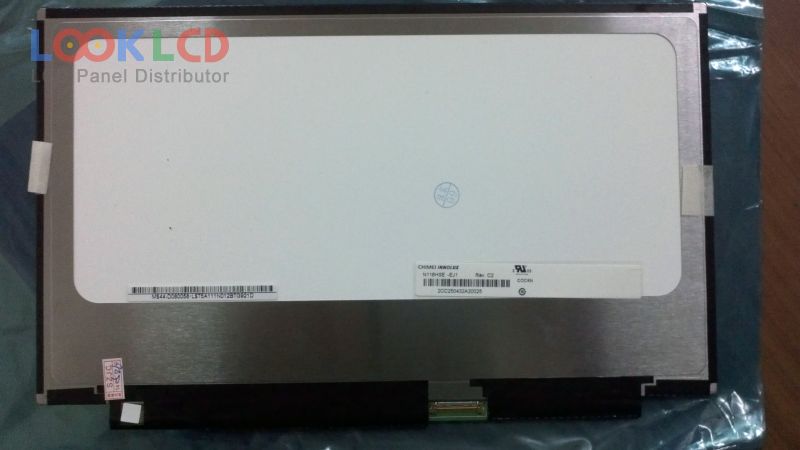

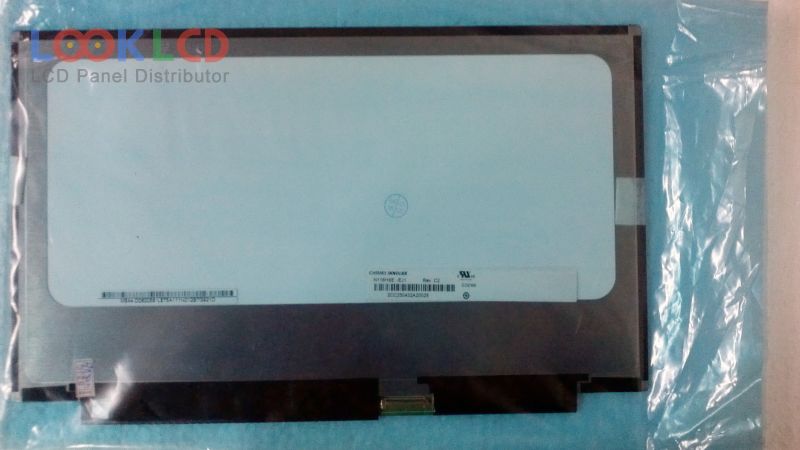

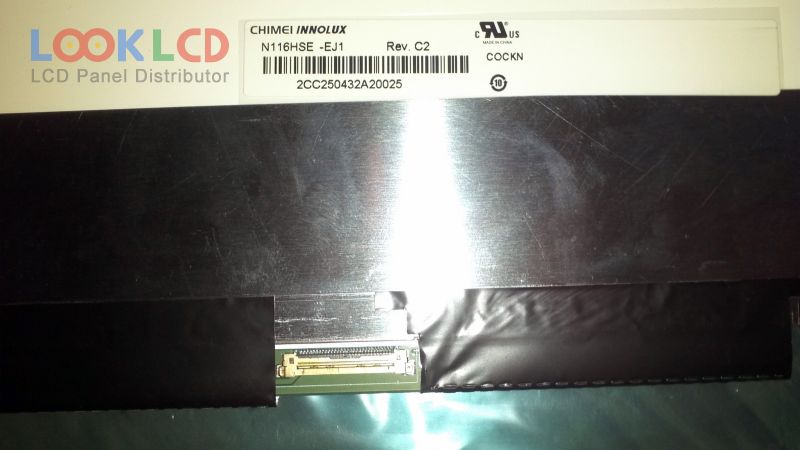

| Artikelnummer | N116HSE-EJ1 |
| Marke | Innolux |
| Größe | 11.6 |
| Anwendung | NBPC |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 700:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | eDP |
| Panel-Marke | INNOLUX |
| Panel-Modell | N116HSE-EJ1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 11.6 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | AAS, Normally Black, Transmissive |
| aktiver Bereich | 256.32×144.18 mm |
| Umriss | 268×156.9×2.5 mm |
| Formstil | Slim (PCBA Flat, Depth ≤3.2mm) |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 700:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193172% |
| Reaktionszeit | 14/11 (Typ.)(Tr/Td) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | eDP (2 Lanes), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
| B116XAN03.1 HW1A | AUO | 11.6 | 1366×768 |
| B116XTK01.1 | AUO | 11.6 | 1366×768 |
| B116XW01 V0 | AUO | 11.6 | 1366×768 |
| LP116WH1-TLA1 | LG Display | 11.6 | 1366×768 |
| LP116WH6-SPA2 | LG Display | 11.6 | 1366×768 |
| N116HSE-EA1 | Innolux | 11.6 | 1920×1080 |
| N116HSE-EA2 | Innolux | 11.6 | 1920×1080 |
| N116HSE-EBC | Innolux | 11.6 | 1920×1080 |
| N116HSE-EJ1 | Innolux | 11.6 | 1920×1080 |
| B121EW03 V0 | AUO | 12.1 | 1280×800 |
| B156XW02 V2 HW4A | AUO | 15.6 | 1366×768 |
| CLAA140WB11A | CPT | 14.0 | 1366×768 |
| LP133WX1-TLC1 | LG Display | 13.3 | 1280×800 |
| LP140WH1-TLC1 | LG Display | 14.0 | 1366×768 |
| LP154WX4-TLC8 | LG Display | 15.4 | 1280×800 |
| LP171WX2-TLB1 | LG Display | 17.1 | 1440×900 |
| LTN121XJ-L03 | Samsung | 12.1 | 1024×768 |
| N173FGE-L23 | Innolux | 17.3 | 1600×900 |
| TM133XG-A01-03 | SANYO | 13.3 | 1024×768 |
