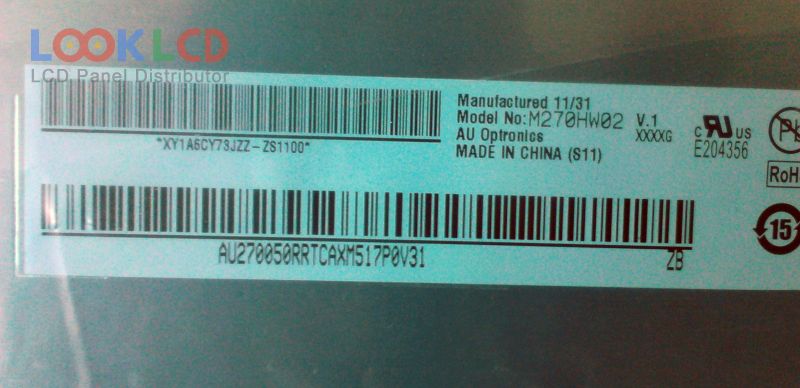

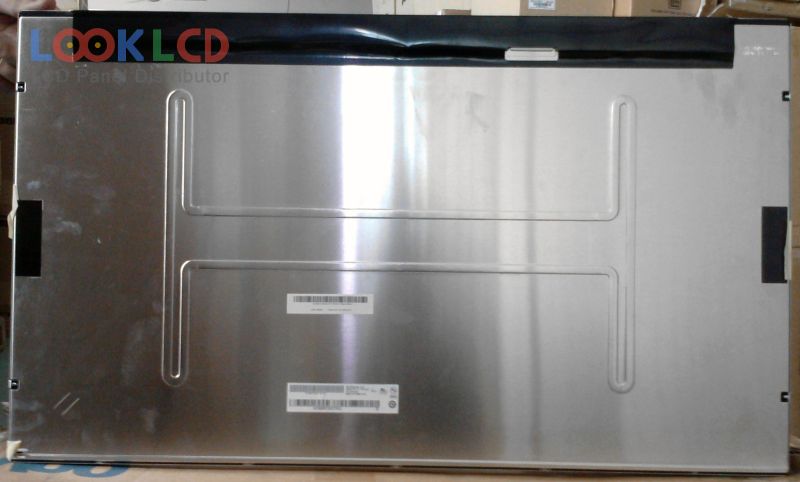

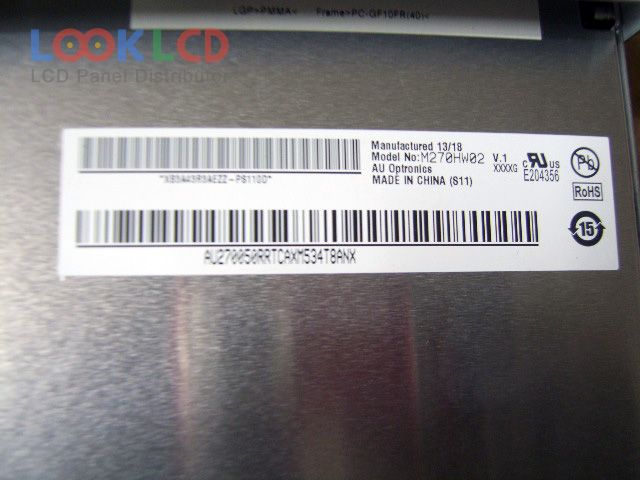

| Artikelnummer | M270HW02 V1 |
| Marke | AUO |
| Größe | 27.0 |
| Anwendung | DMPC |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 5000:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | AUO |
| Panel-Modell | M270HW02 V1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 27.0 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | MVA, Normally Black, Transmissive |
| aktiver Bereich | 597.6×336.15 mm |
| Umriss | 630×368.2×12 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 5000:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193172% |
| Reaktionszeit | 7/5 (Typ.)(Tr/Td) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 18S4PWLEDWithout Driver |
| Signalschnittstelle | LVDS (2 ch, 8-bit), 30 pins |
| Eingangsspannung | 5.0V (Typ.) |
| Anwendung | DMPC |
