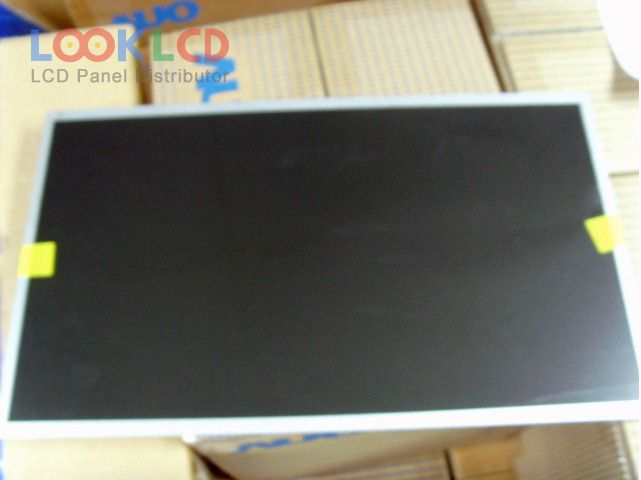

| Artikelnummer | M215HW01 V7 |
| Marke | AUO |
| Größe | 21.5 |
| Anwendung | DMPC |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 250 |
| CR | 1000:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | AUO |
| Panel-Modell | M215HW01 V7 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 21.5 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 476.64×268.11 mm |
| Umriss | 495.6×292.2×11.3 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 250 cd/m² (Typ.) |
| Kontrastverhältnis | 1000:1 (Typ.) |
| Farben anzeigen | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Reaktionszeit | 3.8/1.2 (Typ.)(Tr/Td) |
| Blickwinkel | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 2 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (2 ch, 8-bit), 30 pins |
| Eingangsspannung | 5.0V (Typ.) |
| Anwendung | DMPC |
