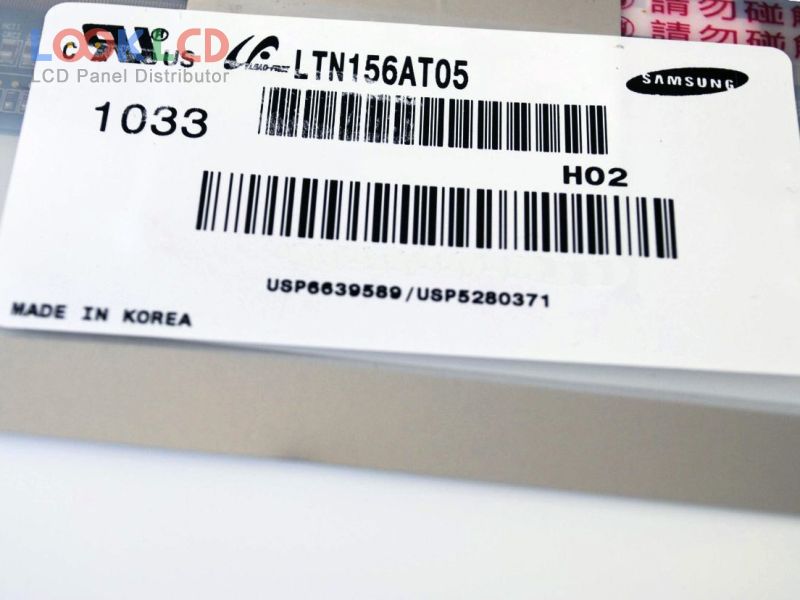

| Artikelnummer | LTN156AT05-H02 |
| Marke | Samsung |
| Größe | 15.6 |
| Anwendung | NBPC |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | 200 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | SAMSUNG |
| Panel-Modell | LTN156AT05-H02 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.6 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 344.232×193.536 mm |
| Umriss | 359.3×209.5×5.5 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Hard coating (3H) |
| Helligkeit | 200 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Min.) |
| Farben anzeigen | 262K (6-bit), CIE193160% |
| Reaktionszeit | 16 (Typ.)(Tr+Td) |
| Blickwinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 11S5PWLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
