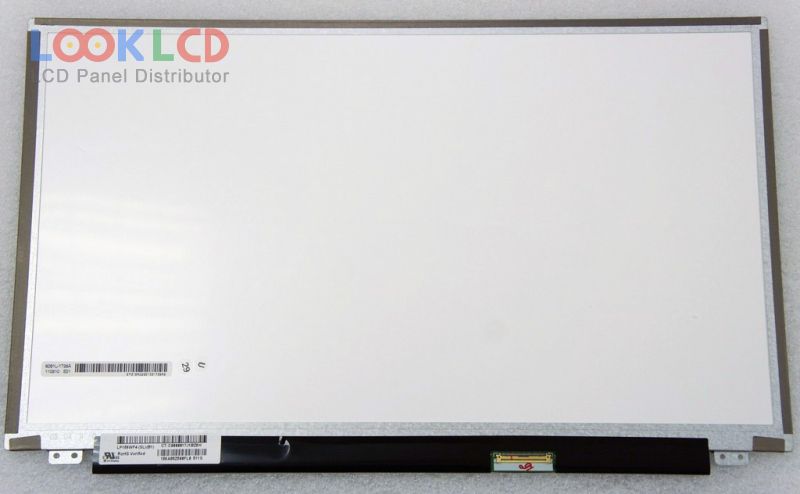

| Artikelnummer | LP156WF4-SLB1 |
| Marke | LG Display |
| Größe | 15.6 |
| Anwendung | NBPC |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 250 |
| CR | 400:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | LG Display |
| Panel-Modell | LP156WF4-SLB1 1 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.6 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | AH-IPS, Normally Black, Transmissive |
| aktiver Bereich | 344.16×193.59 mm |
| Umriss | 359.5×218.53×3.4 mm |
| Formstil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 250 cd/m² (Typ.) |
| Kontrastverhältnis | 400:1 (Min.) |
| Farben anzeigen | 262K (6-bit), CIE193160% |
| Reaktionszeit | 35 (Typ.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 6 stringsWLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (2 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
