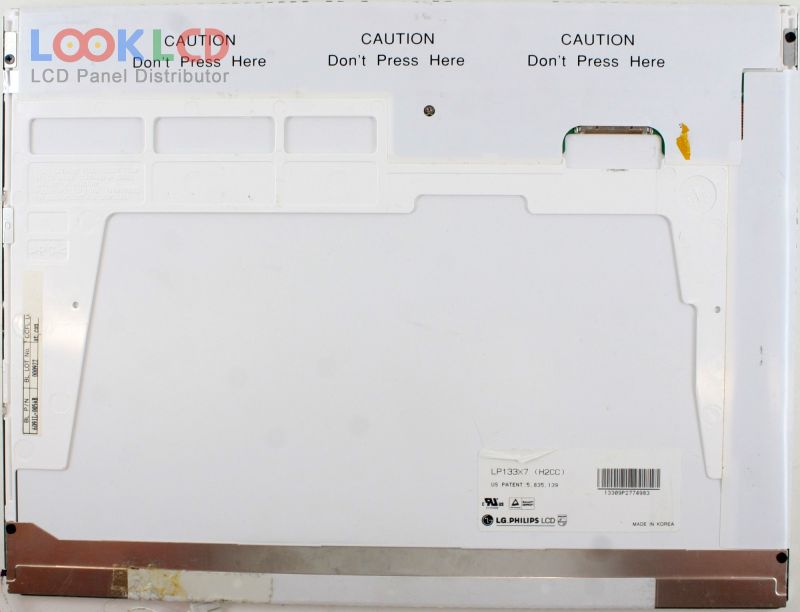

| Artikelnummer | LP133X7-H2CC |
| Marke | LG Display |
| Größe | 13.3 |
| Anwendung | NBPC |
| Auflösung | 1024×768 |
| Komposition | LCM |
| Helligkeit | 130 |
| CR | 200:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | LG.Philips LCD |
| Panel-Modell | LP133X7-H2CC 15 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 13.3 inch |
| Auflösung | 1024(RGB)×768 , XGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 270.336×202.752 mm |
| Umriss | 284×214.5×5.9 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 130 cd/m² (Typ.) |
| Kontrastverhältnis | 200:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 30/30 (Typ.)(Tr/Td) |
| Blickwinkel | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
| CLAA133WB01A | CPT | 13.3 | 1366×768 |
| HN133WU1-100 | BOE | 13.3 | 1920×1080 |
| LP133WH2-TLHA | LG Display | 13.3 | 1366×768 |
| LP133X09-A2 | LG Display | 13.3 | 1024×768 |
| LP133X3 | LG Display | 13.3 | 1024×768 |
| LP133X3-A | LG Display | 13.3 | 1024×768 |
| LP133X5-A2IB | LG Display | 13.3 | 1024×768 |
| LP133X7-F2IB | LG Display | 13.3 | 1024×768 |
| LP133X7-H2CC | LG Display | 13.3 | 1024×768 |
| LP133X7-P2IB | LG Display | 13.3 | 1024×768 |
| LP133WX2-TLC3 | LG Display | 13.3 | 1280×800 |
| LP156WF1-TLB2 | LG Display | 15.6 | 1920×1080 |
| LP156WF1-TLE1 | LG Display | 15.6 | 1920×1080 |
| LQ133K1LD4B | SHARP | 13.3 | 1280×800 |
| LTD133EWZX | TOSHIBA | 13.3 | 1280×800 |
| LTN141AT09-301 | Samsung | 14.1 | 1280×800 |
| M125NWR3 R0 | IVO | 12.5 | 1366×768 |
| N121IA-L02 | Innolux | 12.1 | 1280×800 |
| N140B6-L01 | Innolux | 14.0 | 1366×768 |
| N140BGK-L33 | Innolux | 14.0 | 1366×768 |
