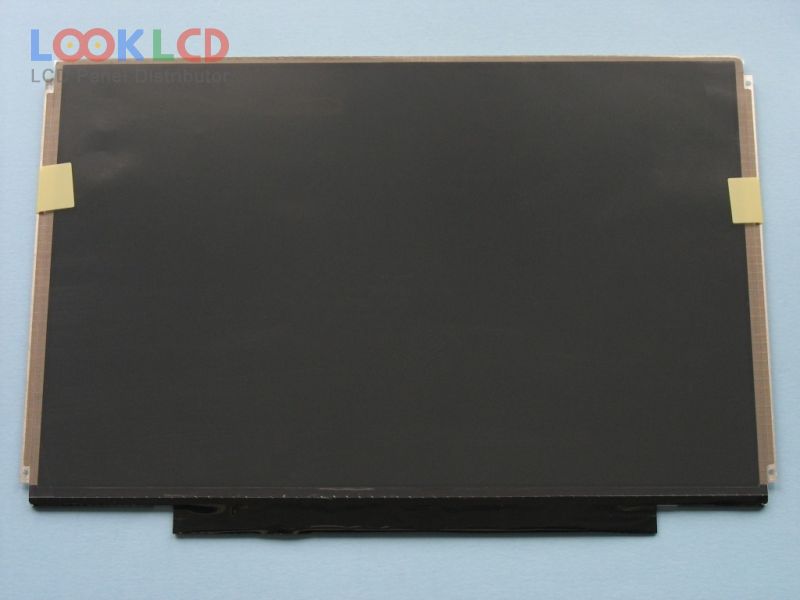

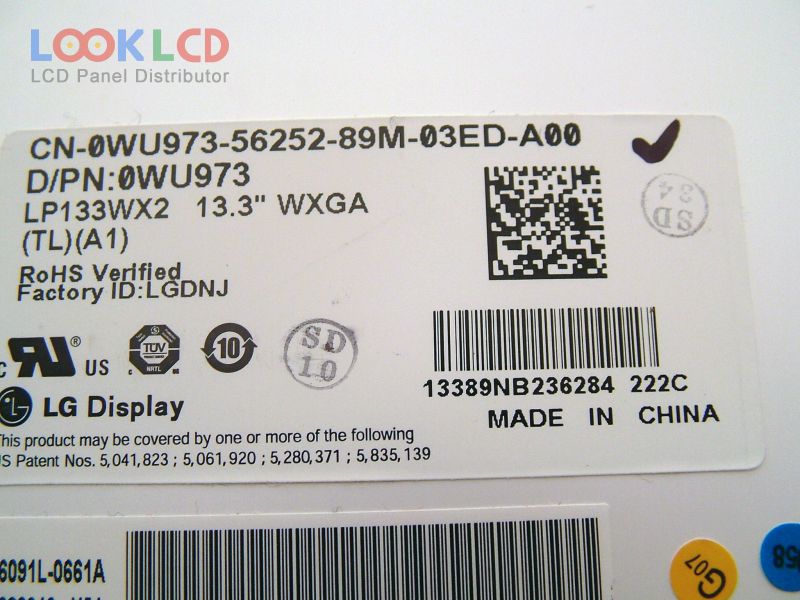

| Artikelnummer | LP133WX2-TLA1 |
| Marke | LG Display |
| Größe | 13.3 |
| Anwendung | NBPC |
| Auflösung | 1280×800 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 400:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | LG Display |
| Panel-Modell | LP133WX2-TLA1 2 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 13.3 inch |
| Auflösung | 1280(RGB)×800 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 286.08×178.8 mm |
| Umriss | 304×202.5×3.35 mm |
| Formstil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Oberfläche | Antiglare (Haze 25%) |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 400:1 (Min.) |
| Farben anzeigen | 262K (6-bit), CIE193145% |
| Reaktionszeit | 16 (Typ.)(Tr+Td) |
| Blickwinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 9S6PWLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
