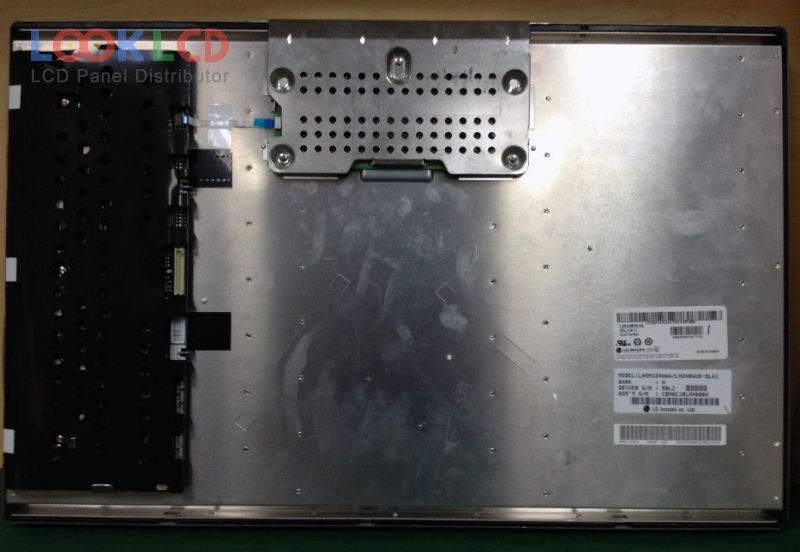

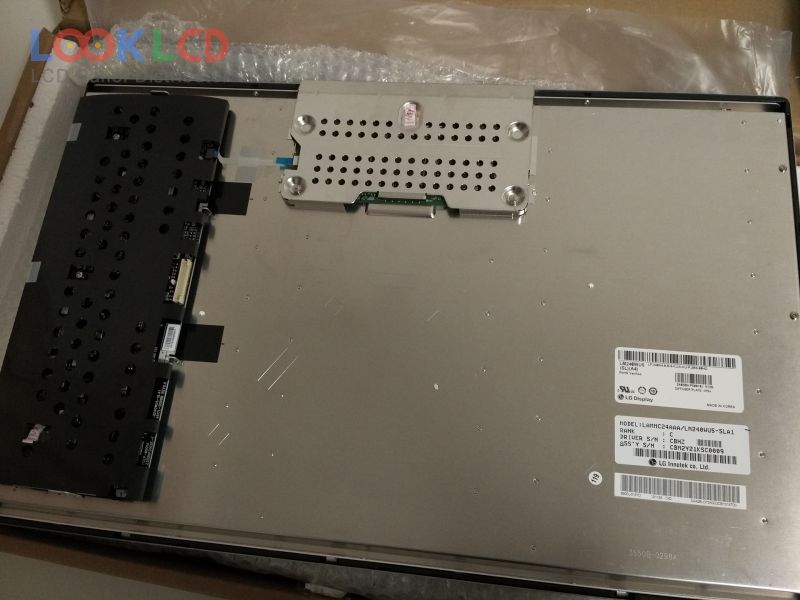

| Artikelnummer | LM240WU5-SLA1 |
| Marke | LG Display |
| Größe | 24.0 |
| Anwendung | DMPC |
| Auflösung | 1920×1200 |
| Komposition | LCM |
| Helligkeit | 250 |
| CR | 1000:1 |
| Farben | 1.07B |
| Hintergrundbeleuchtung | RGB LED |
| Schnittstelle | LVDS |
| Panel-Marke | LG.Philips LCD |

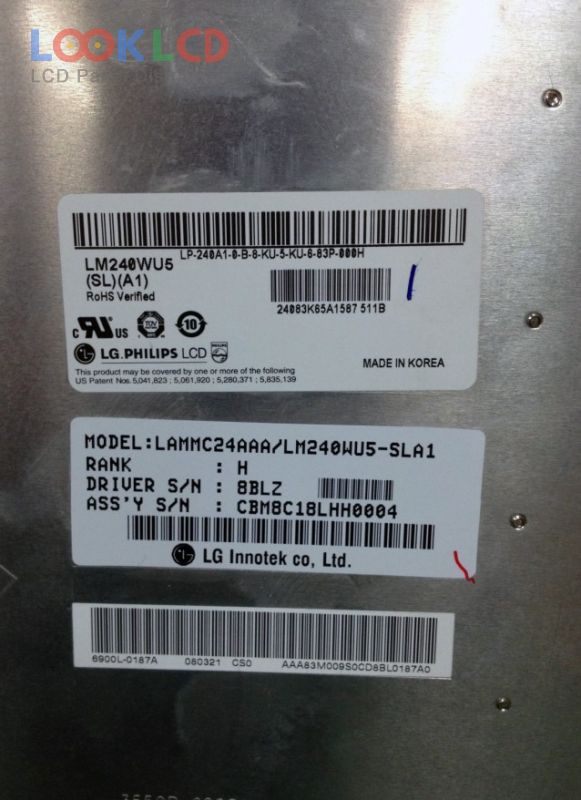

| Panel-Modell | LM240WU5-SLA1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 24.0 inch |
| Auflösung | 1920(RGB)×1200 , WUXGA |
| Anzeigemodus | S-IPS, Normally Black, Transmissive |
| aktiver Bereich | 518.4×324 mm |
| Umriss | 546.4×352×48.9 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 250 cd/m² (Typ.) |
| Kontrastverhältnis | 1000:1 (Typ.) |
| Farben anzeigen | 1.07B (10-bit), CIE1931110% |
| Reaktionszeit | 6/6 (Typ.)(Tr/Td); 6 (Typ.)(G to G) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | RGB LEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (2 ch, 10-bit), 51 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | DMPC |
