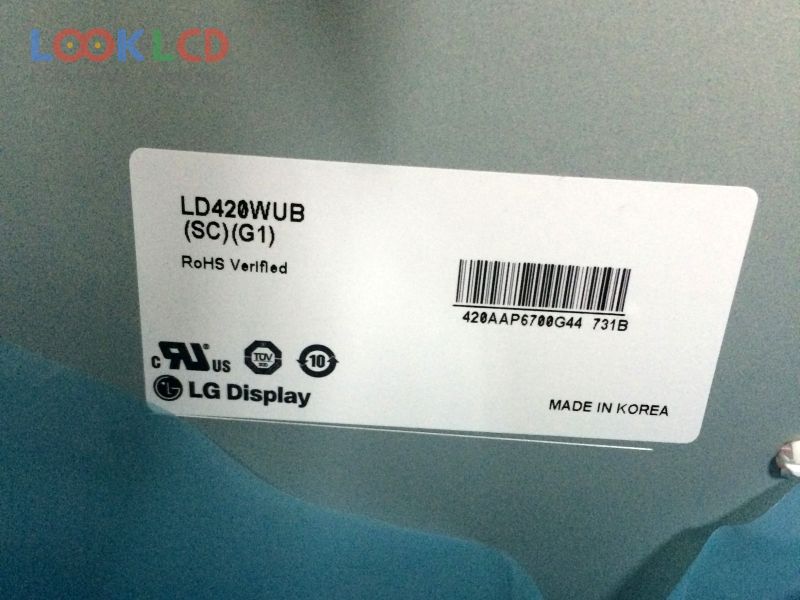

| Artikelnummer | LD420WUB-SCG1 |
| Marke | LG Display |
| Größe | 42 |
| Anwendung | PID |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 500 |
| CR | 1200:1 |
| Farben | 16.7M/1.06B |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | LG Display |
| Panel-Modell | LD420WUB-SCG1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 42 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | S-IPS, Normally Black, Transmissive |
| aktiver Bereich | 930.24×523.26 mm |
| Umriss | 956.4×549.4×54.5 mm, Videowall Seam 26.2 mm |
| Oberfläche | Antiglare (Haze 10%), Hard coating (3H) |
| Helligkeit | 500 cd/m² (Typ.) |
| Kontrastverhältnis | 1200:1 (Typ.) |
| Farben anzeigen | 16.7M/1.06B (8-bit / 8-bit + FRC) |
| Reaktionszeit | 10 (Typ.)(G to G) |
| Blickwinkel | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | CCFLEmbedded (Inverter) |
| Signalschnittstelle | LVDS (2 ch, 8/10-bit), 51 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | PID |
