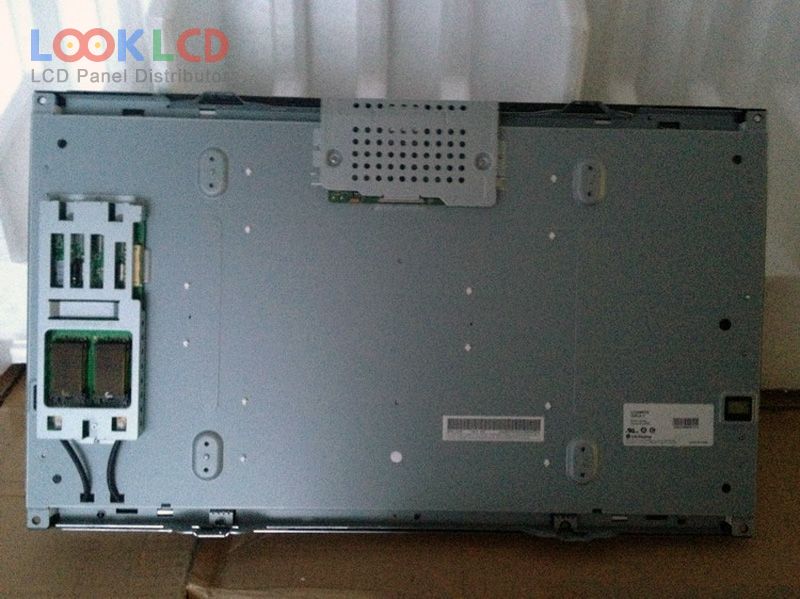

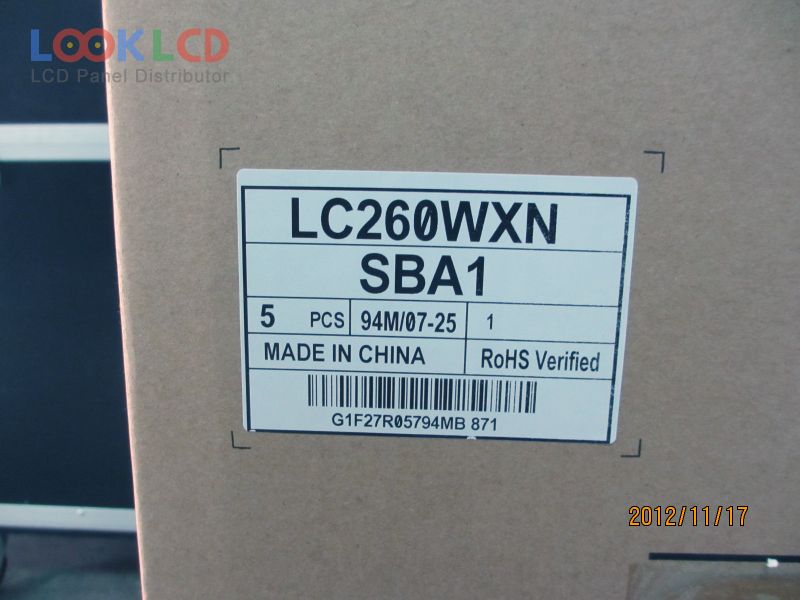

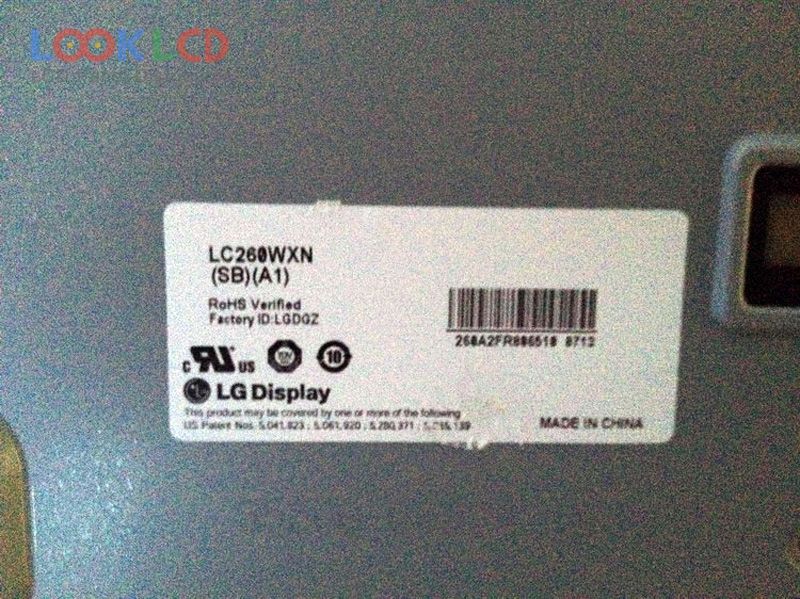

| Artikelnummer | LC260WXN-SBA1 |
| Marke | LG Display |
| Größe | 26.0 |
| Anwendung | LCTV |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | 450 |
| CR | 1000:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | EEFL |
| Schnittstelle | LVDS |
| Panel-Marke | LG Display |
| Panel-Modell | LC260WXN-SBA1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 26.0 inch |
| Auflösung | 1366×768(RGB) , WXGA |
| Anzeigemodus | S-IPS, Normally Black, Transmissive |
| aktiver Bereich | 575.769×323.712 mm |
| Umriss | 626×373 mm |
| Oberfläche | Antiglare (Haze 10%), Hard coating (3H) |
| Helligkeit | 450 cd/m² (Typ.) |
| Kontrastverhältnis | 1000:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit) |
| Reaktionszeit | 8 (Typ.)(G to G) |
| Blickwinkel | 89/89/89/89 (Min.)(CR>10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 12 pcsEEFLEmbedded (Inverter) |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 30 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | LCTV |
